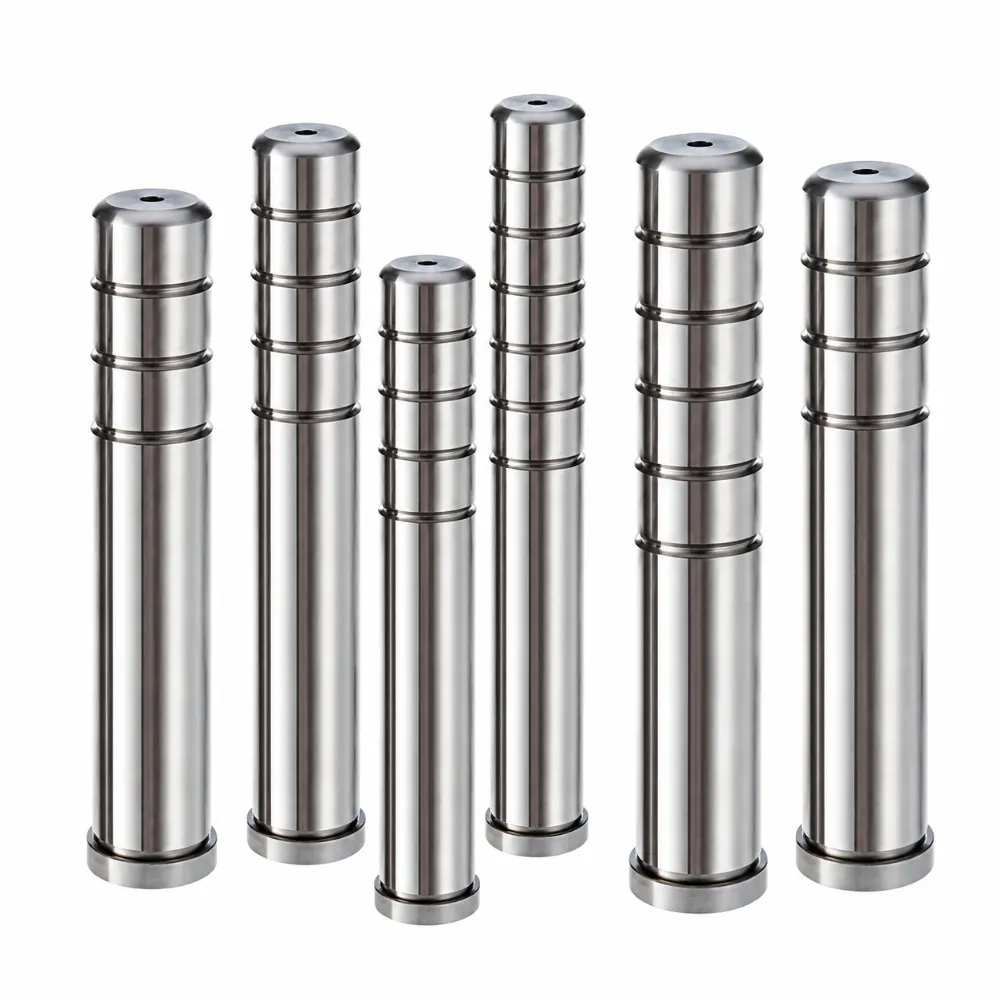

Pilar Panduan Cetakan Stamping Logam
The metal stamping mold guide pillar is designed to support accurate die alignment in metal forming and stamping applications. It ensures controlled movement between die sections, helping maintain production precision and operational stability. Constructed from heat-treated steel, it delivers excellent durability and resistance to repeated mechanical stress. The precision-ground surface promotes smooth guiding action and reliable performance during continuous manufacturing processes. It is widely used in stamping tools requiring dependable alignment and long-term service life.
- Stable High Speed Operation Performance: Menjaga akurasi selama siklus stamping cepat
- Enhanced Load Distribution Capability Design: Menyeimbangkan gaya di seluruh komponen cetakan secara merata
- Long Service Life Durability Structure: Memperpanjang masa pakai operasional dalam penggunaan berat
- Smooth Die Engagement Motion Control: Memastikan penyelarasan yang konsisten selama siklus gerakan
Deskripsi Produk
Pendahuluan
The metal stamping mold guide pillar is an essential component used in stamping dies to ensure precise alignment between upper and lower die sections. It plays a vital role in maintaining accurate movement during punching, penghapusan, dan operasi pembentukan. By providing stable guidance throughout the stamping process, it helps improve production consistency, reduce dimensional variation, and support efficient tool performance in demanding manufacturing environments.
Manufactured from high-quality hardened alloy steel and processed through precision grinding, the metal stamping mold guide pillar offers excellent wear resistance, kekuatan, dan stabilitas dimensi. Its smooth surface finish minimizes friction between guiding components, ensuring reliable movement during continuous operation. The robust structure is designed to withstand repetitive impact loads commonly encountered in high-speed stamping applications, helping extend tooling life and reduce maintenance requirements.
The metal stamping mold guide pillar is available in various diameters and lengths to accommodate different die set configurations. It can be produced according to ISO, DARI, DIA, or custom specifications to meet specific industrial requirements. Widely used in automotive parts production, electronic hardware manufacturing, komponen peralatan, and precision metal forming industries, it provides dependable alignment performance and long-term operational reliability for modern stamping and tooling systems.
Spesifikasi
| Barang | Deskripsi |
|---|---|
| Nama Produk | Pilar Panduan Cetakan Stamping Logam |
| Jenis Produk | Pos Panduan / Pilar Panduan |
| Bahan | SUJ2 / GCr15 / 100Cr6 |
| Kekerasan | HRC 58–62 |
| Permukaan Akhir | Tanah Presisi |
| Kekasaran Permukaan | Ra 0,2–0,8 μm |
| Kelurusan | ≤ 0.005 mm |
| Kebulatan | ≤ 0.003 mm |
| Kisaran Diameter | 10 mm – 80 mm |
| Rentang panjang | 80 mm – 1200 mm |
| Toleransi | Standar ISO / DIN |
| Layanan Kustom | Tersedia |
Tiga Aspek Kustomisasi Utama, Disesuaikan dengan Kebutuhan Anda
Mencocokkan berbagai metode kustomisasi untuk memenuhi berbagai kebutuhan.
Manufaktur Presisi, Kualitas Luar Biasa
Kemampuan Ketahanan Benturan yang Unggul
Engineered to endure repetitive stamping forces, maintaining structural integrity and reliable guiding performance under demanding high-speed metal forming operations.
Kontrol Gerakan Die Presisi
Provides accurate guidance throughout the stamping cycle, ensuring smooth die travel and improving consistency in finished metal component production.
Pengurangan Persyaratan Pemeliharaan Perkakas
High-quality materials and precision finishing help minimize wear, lowering maintenance frequency and reducing downtime in industrial manufacturing environments.
Dapat Beradaptasi Dengan Berbagai Sistem Die
Tersedia dalam berbagai ukuran dan spesifikasi, allowing seamless integration into different stamping dies and custom metal forming tooling applications.
Layanan Berkualitas, Waktu pengiriman yang dipersingkat
Dari tinjauan desain hingga pengiriman, Kami menyediakan tindak lanjut satu lawan satu khusus selama seluruh proses.
Konsultasi → Menyediakan Gambar → Tinjauan Desain & Penawaran → Pemrosesan Pesanan → Inspeksi Kualitas → Pengiriman Tepat Waktu → Tindak Lanjut Purna Jual
Keuntungan kami
Didukung oleh pengalaman teknik lebih dari 25 tahun, Tim kami menawarkan layanan komprehensif—mulai dari desain cetakan yang disesuaikan dan pemesinan presisi hingga produksi skala penuh—didukung oleh sistem jaminan kualitas yang kuat dan layanan pelanggan yang proaktif. Bersertifikat di bawah ISO9001, ISO14001, dan IATF 16949, Kami terus berupaya mencapai keunggulan dalam kualitas, inovasi, dan kepuasan pelanggan.
Lebih dari 100,000 unit tersedia, dengan pengiriman 2 jam untuk produk standar.
Menerapkan sistem inspeksi tiga tahap—pemeriksaan material awal, inspeksi dalam proses, dan inspeksi akhir.
Inventaris besar dan proses cepat, Menjamin pengiriman tepat waktu dengan inspeksi produk 100%.
Rentang Aplikasi
Pilihan utama di berbagai industri.
Pertanyaan yang diajukan
Q1: What is a metal stamping mold guide pillar used for?
It is used to ensure precise alignment and smooth movement between upper and lower stamping dies during metal forming operations.
Q2: Material apa saja yang umum digunakan?
It is typically made from hardened alloy steel such as GCr15, SUJ2, or 100Cr6 for high strength and wear resistance.
Q3: Bisakah dikustomisasi?
Iya, diameter, panjang, kekerasan, and tolerance can be customized according to different stamping die requirements.
Q4: Is it suitable for high-speed production?
Iya, it is designed for high-speed stamping environments with stable performance under continuous impact loads.
Q5: Di mana istilah ini umum digunakan?
It is widely used in automotive parts, electronic hardware, komponen peralatan, and precision metal stamping industries.
