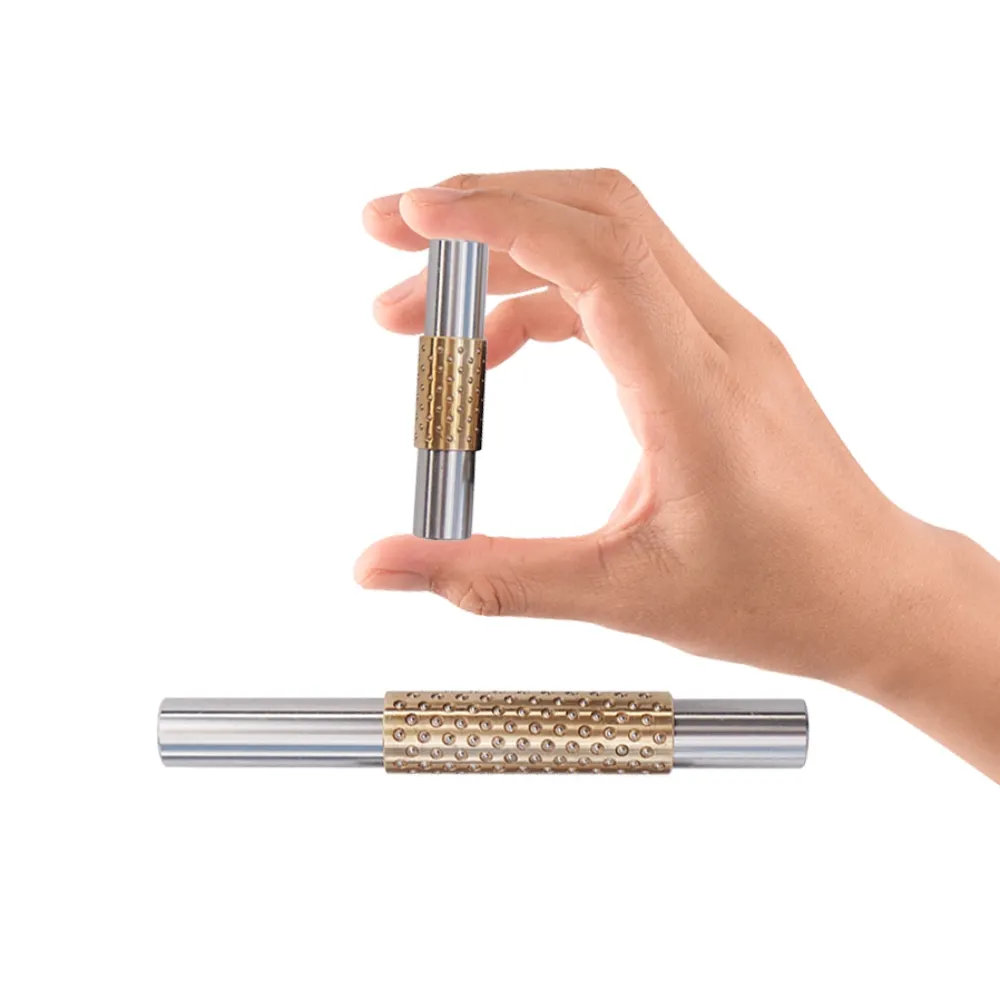

Bushing Panduan Bola Miniatur
Miniature Ball Guide Bushing is a compact precision component designed to support controlled linear movement in small-scale mechanical systems. It enables accurate guidance within tight installation spaces and ensures reliable motion consistency. Built for micro applications, it delivers stable operation, smooth performance, and dependable alignment in electronics, medis, dan peralatan otomasi presisi.
- Space Saving Layout: Cocok untuk rakitan ultra kecil
- Precision Repeatability: Memastikan output gerak yang konsisten
- Smooth Transmission: Mengurangi resistansi mekanis
- Stable Micro Operation: Mendukung sistem halus secara konsisten
Deskripsi Produk
Pendahuluan
Miniature Ball Guide Bushing is a high-precision micro linear motion component designed for compact mold systems and precision mechanical assemblies. It uses a recirculating ball structure to achieve ultra-smooth guiding and accurate positioning in extremely limited installation spaces. This makes it ideal for applications where both space efficiency and motion accuracy are critical. It ensures stable alignment and consistent performance in micro-scale industrial equipment.
Manufactured from premium hardened steel or bearing steel, Miniature Ball Guide Bushing delivers excellent wear resistance, high rigidity, and long service life despite its compact structure. Advanced micro CNC machining, penggilingan presisi, and strict assembly control ensure extremely tight tolerances at micro-level accuracy. The internal ball circulation system significantly reduces friction, allowing smooth linear movement even under high-speed and continuous operation conditions, while maintaining stable guiding performance and minimizing energy loss.
Miniature Ball Guide Bushing is widely applied in electronics manufacturing, peralatan semikonduktor, perangkat medis, instrumen optik, robotika, dan sistem otomasi presisi. Mendukung desain standar maupun kustom, including micro inner diameters, outer diameters, and specialized lubrication solutions. Its flexibility and reliability make it an essential component for high-tech industries requiring ultra-precise motion control, compact structural design, and long-term operational stability in demanding micro-engineering environments.
Spesifikasi
| Barang | Deskripsi |
|---|---|
| Nama Produk | Bushing Panduan Bola Miniatur |
| Jenis Struktur | Jenis Bola Resirkulasi |
| Bahan | Baja Bantalan / Baja Keras |
| Kekerasan | HRC 58–62 |
| Toleransi | Ultra-presisi (±0.001–0.002 mm) |
| Diameter Dalam | Ukuran Mikro Standar / Disesuaikan |
| Diameter Luar | Ukuran Mikro Standar / Disesuaikan |
| Panjang | Dapat disesuaikan |
| Permukaan Akhir | Tanah Presisi / Dipoles |
| Pelumasan | Sistem Gemuk / Oli Mikro |
| Proses Manufaktur | Perakitan Penggilingan Pemesinan CNC Mikro |
| Kustomisasi | OEM / ODM Tersedia |
Tiga Aspek Kustomisasi Utama, Disesuaikan dengan Kebutuhan Anda
Mencocokkan berbagai metode kustomisasi untuk memenuhi berbagai kebutuhan.
Manufaktur Presisi, Kualitas Luar Biasa
Desain Ultra Kompak
Miniature Ball Guide Bushing is engineered for extremely limited installation spaces, enabling precise linear motion in micro-scale systems while maintaining structural stability and reliable performance in compact mechanical assemblies.
Gerak Presisi Tinggi
The recirculating ball structure ensures accurate linear guidance with minimal deviation, supporting consistent positioning in high-precision equipment such as electronics, perangkat medis, and micro automation systems.
Efisiensi Gesekan Rendah
Ball rolling contact significantly reduces friction compared to sliding systems, improving motion efficiency, lowering energy loss, and ensuring smoother operation during continuous high-speed movement.
Stabilitas Layanan Lama
Manufactured with hardened steel and precision machining, it delivers strong wear resistance and maintains stable performance over long-term operation in demanding micro-engineering environments.
Layanan Berkualitas, Waktu pengiriman yang dipersingkat
Dari tinjauan desain hingga pengiriman, Kami menyediakan tindak lanjut satu lawan satu khusus selama seluruh proses.
Konsultasi → Menyediakan Gambar → Tinjauan Desain & Penawaran → Pemrosesan Pesanan → Inspeksi Kualitas → Pengiriman Tepat Waktu → Tindak Lanjut Purna Jual
Keuntungan kami
Didukung oleh pengalaman teknik lebih dari 25 tahun, Tim kami menawarkan layanan komprehensif—mulai dari desain cetakan yang disesuaikan dan pemesinan presisi hingga produksi skala penuh—didukung oleh sistem jaminan kualitas yang kuat dan layanan pelanggan yang proaktif. Bersertifikat di bawah ISO9001, ISO14001, dan IATF 16949, Kami terus berupaya mencapai keunggulan dalam kualitas, inovasi, dan kepuasan pelanggan.
Lebih dari 100,000 unit tersedia, dengan pengiriman 2 jam untuk produk standar.
Menerapkan sistem inspeksi tiga tahap—pemeriksaan material awal, inspeksi dalam proses, dan inspeksi akhir.
Inventaris besar dan proses cepat, Menjamin pengiriman tepat waktu dengan inspeksi produk 100%.
Rentang Aplikasi
Pilihan utama di berbagai industri.
Pertanyaan yang diajukan
1. What is a Miniature Ball Guide Bushing used for?
It is used in compact precision systems to provide smooth and accurate linear motion in limited installation spaces.
2. How does a Miniature Ball Guide Bushing work?
It uses a recirculating ball mechanism that replaces sliding friction with rolling motion for higher precision and efficiency.
3. What materials are used in Miniature Ball Guide Bushing?
It is typically made from hardened steel or bearing steel for durability and long service life.
4. Where is Miniature Ball Guide Bushing commonly applied?
Alat ini banyak digunakan dalam elektronik, perangkat medis, robotika, peralatan semikonduktor, and micro automation systems.
5. What are the main advantages of Miniature Ball Guide Bushing?
It offers ultra-compact design, presisi tinggi, gesekan rendah, and stable performance in micro-scale applications.
