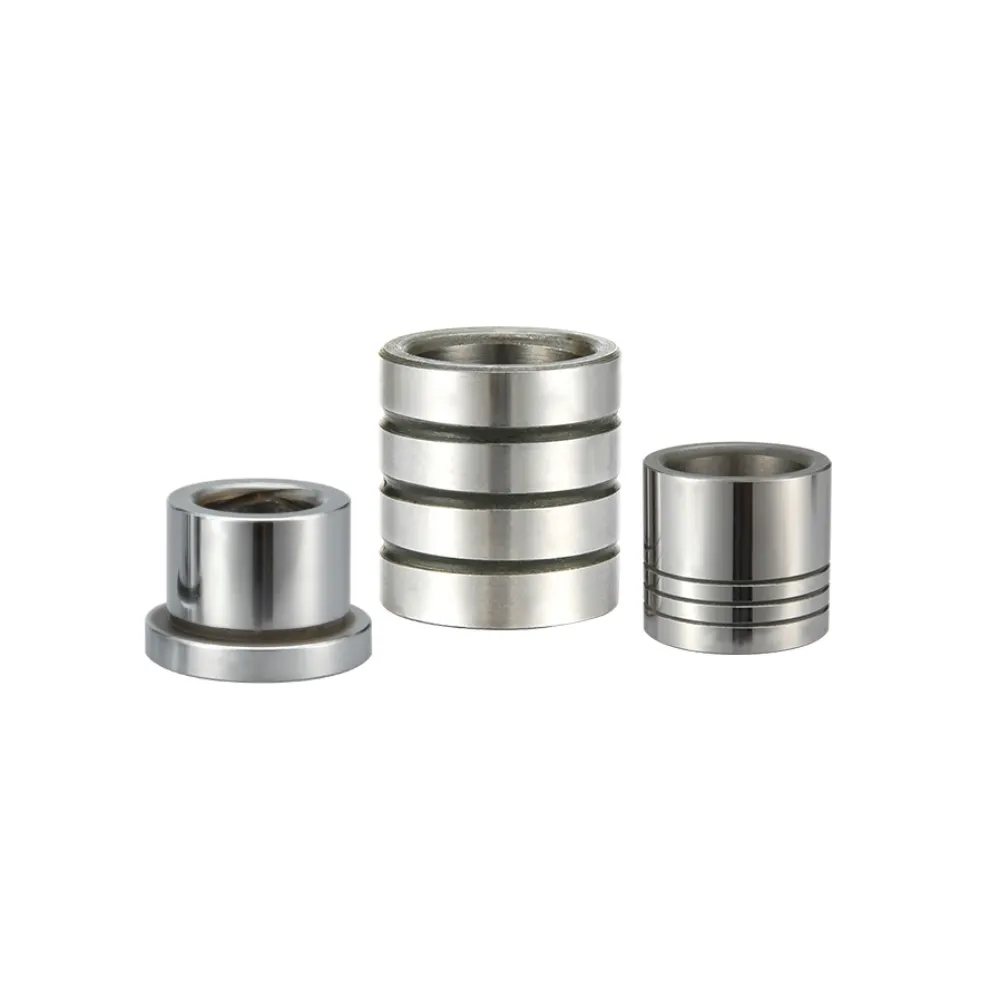

Panduan Stamping Logam Bushing
Metal Stamping Guide Bushing is a core die component used to support accurate motion control and alignment in stamping systems. It helps maintain stable operation between moving parts and improves overall forming consistency. Dirancang untuk penggunaan industri, it performs reliably under continuous load conditions and is suitable for various metal processing and high-precision manufacturing applications.
- Dimensional Consistency: Mempertahankan geometri bagian yang stabil
- Vibration Control: Mengurangi guncangan operasional
- Assembly Efficiency: Memastikan instalasi cepat
- Daya Tahan Diperpanjang: Mendukung siklus produksi yang panjang
Deskripsi Produk
Pendahuluan
Metal Stamping Guide Bushing actively ensures accurate alignment and smooth guiding within stamping die systems. It works in coordination with guide pillars to actively stabilize die plate positioning during punching and forming operations. By maintaining consistent alignment, it actively reduces mechanical deviation, improves stamping precision, and enhances overall production efficiency in metal forming processes.
Manufacturers produce Metal Stamping Guide Bushing from high-quality bearing steel or hardened tool steel to actively achieve excellent wear resistance, kekuatan tinggi, dan masa pakai yang panjang. Pemesinan CNC canggih, penggilingan internal presisi, and heat treatment processes actively control tolerances within ±0.002 mm. The finely polished inner surface actively reduces friction between moving parts, enabling smooth guiding performance even under high-speed, continuous stamping conditions while actively lowering maintenance demand and wear.
Metal Stamping Guide Bushing is widely applied in hardware manufacturing, automotive sheet metal production, electrical component stamping, Suku Cadang Peralatan Rumah Tangga, dan sistem die progresif. It actively supports both standard die structures and customized tooling solutions. Engineers can flexibly design inner diameter, diameter luar, panjang, alur pelumasan, and material selection to meet diverse industrial requirements. Its reliable performance actively ensures stable operation, presisi tinggi, and long-term durability in demanding stamping production environments.
Spesifikasi
| Barang | Deskripsi |
|---|---|
| Nama Produk | Panduan Stamping Logam Bushing |
| Bahan | Baja Bantalan / Baja Perkakas yang Dikeraskan |
| Kekerasan | HRC 58–62 |
| Toleransi | ±0.002 mm |
| Diameter Dalam | Standar atau Disesuaikan |
| Diameter Luar | Standar atau Disesuaikan |
| Panjang | Disesuaikan |
| Permukaan Akhir | Tanah Presisi |
| Jenis pelumasan | Alur Oli Opsional |
| Proses Manufaktur | Perlakuan Panas Penggilingan Mesin CNC |
| Kustomisasi | OEM / ODM Tersedia |
Tiga Aspek Kustomisasi Utama, Disesuaikan dengan Kebutuhan Anda
Mencocokkan berbagai metode kustomisasi untuk memenuhi berbagai kebutuhan.
Manufaktur Presisi, Kualitas Luar Biasa
Akurasi Pemosisian Tinggi
Metal Stamping Guide Bushing ensures precise alignment between guide pillars and die components, reducing deviation during stamping operations and maintaining consistent positioning accuracy in high-speed production environments.
Performa Pemandu Mulus
The precision-ground inner surface minimizes friction, allowing stable and smooth movement of die parts, improving operational efficiency and reducing resistance during continuous stamping cycles.
Ketahanan aus yang sangat baik
Terbuat dari bahan baja yang mengeras, Memberikan ketahanan kuat terhadap abrasi dan deformasi, ensuring reliable performance and extended service life under heavy-duty industrial conditions.
Kapasitas Beban yang Kuat
Designed for high-pressure stamping applications, it maintains structural stability under repeated impact loads, ensuring consistent guiding performance and reducing downtime in production lines.
Layanan Berkualitas, Waktu pengiriman yang dipersingkat
Dari tinjauan desain hingga pengiriman, Kami menyediakan tindak lanjut satu lawan satu khusus selama seluruh proses.
Konsultasi → Menyediakan Gambar → Tinjauan Desain & Penawaran → Pemrosesan Pesanan → Inspeksi Kualitas → Pengiriman Tepat Waktu → Tindak Lanjut Purna Jual
Keuntungan kami
Didukung oleh pengalaman teknik lebih dari 25 tahun, Tim kami menawarkan layanan komprehensif—mulai dari desain cetakan yang disesuaikan dan pemesinan presisi hingga produksi skala penuh—didukung oleh sistem jaminan kualitas yang kuat dan layanan pelanggan yang proaktif. Bersertifikat di bawah ISO9001, ISO14001, dan IATF 16949, Kami terus berupaya mencapai keunggulan dalam kualitas, inovasi, dan kepuasan pelanggan.
Lebih dari 100,000 unit tersedia, dengan pengiriman 2 jam untuk produk standar.
Menerapkan sistem inspeksi tiga tahap—pemeriksaan material awal, inspeksi dalam proses, dan inspeksi akhir.
Inventaris besar dan proses cepat, Menjamin pengiriman tepat waktu dengan inspeksi produk 100%.
Rentang Aplikasi
Pilihan utama di berbagai industri.
Pertanyaan yang diajukan
1. What is a Metal Stamping Guide Bushing used for?
It is used in stamping die systems to ensure accurate alignment and smooth guiding of moving die components during production.
2. What materials are used for Metal Stamping Guide Bushing?
Bahan umum meliputi baja yang dikeraskan, baja bantalan, dan paduan tahan aus berkekuatan tinggi lainnya.
3. Can Metal Stamping Guide Bushing be customized?
Iya, Dapat disesuaikan ukurannya, toleransi, material, finishing permukaan, and lubrication structure.
4. Where is Metal Stamping Guide Bushing commonly applied?
Alat ini banyak digunakan pada suku cadang otomotif, manufaktur perangkat keras, electronics stamping, dan industri pembentukan logam.
5. What is the main advantage of Metal Stamping Guide Bushing?
Memberikan penyelarasan yang stabil, gerakan panduan halus, and long service life in stamping operations.
