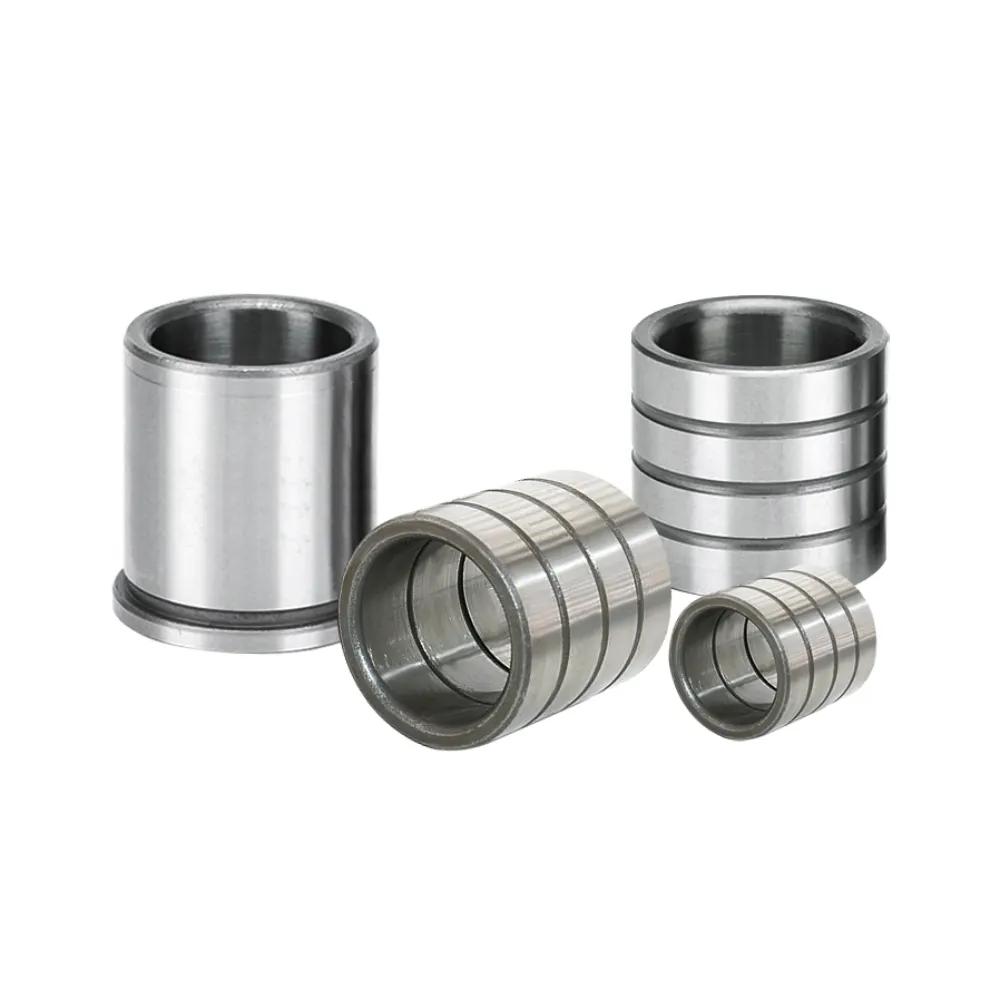

Lengan Pemandu Penari Telanjang
Stripper Guide Sleeve is a key die component used to support accurate movement and positioning of stripper plates in stamping systems. It helps guide motion paths and maintain operational consistency during forming processes. Designed for industrial applications, it delivers stable performance, supports efficient production cycles, and ensures reliable functionality in precision metal stamping environments.
- Stabilitas Dimensi: Mempertahankan geometri yang konsisten
- Load Distribution: Menyeimbangkan tekanan mekanis
- Operational Smoothness: Meningkatkan aliran gerak
- Masa Pakai yang Diperpanjang: Mengurangi frekuensi penggantian
Deskripsi Produk
Pendahuluan
Stripper Guide Sleeve is a precision component designed for accurate alignment and smooth guiding of stripper plates in stamping die systems. It works together with guide pillars to ensure stable movement during punching operations, helping maintain consistent positioning of die components. This improves overall stamping accuracy, reduces mechanical deviation, and enhances production efficiency in metal forming processes.
Diproduksi dari baja bantalan berkualitas tinggi atau baja alat yang dikeraskan, Stripper Guide Sleeve offers excellent wear resistance, high strength, dan masa pakai yang panjang. Pemesinan CNC canggih, penggilingan presisi, and heat treatment processes ensure tight dimensional tolerances up to ±0.002 mm. The finely polished inner surface reduces friction between moving parts, allowing smooth and stable guiding performance even under continuous high-speed stamping conditions, while minimizing maintenance requirements and operational wear.
Stripper Guide Sleeve is widely used in automotive stamping, electronics manufacturing, household appliance production, sistem cetakan progresif, dan industri perangkat keras presisi. It is suitable for both standard and customized mold structures, offering flexible options in size, material, and lubrication design. Its reliable performance makes it an essential component for ensuring stable operation, improving tool life, and maintaining high precision in demanding industrial stamping environments.
Spesifikasi
| Barang | Deskripsi |
|---|---|
| Nama Produk | Lengan Pemandu Penari Telanjang |
| Bahan | Baja Bantalan / Baja Perkakas yang Dikeraskan |
| Kekerasan | HRC 58–62 |
| Toleransi | ±0.002 mm |
| Diameter Dalam | Standar atau Disesuaikan |
| Diameter Luar | Standar atau Disesuaikan |
| Panjang | Disesuaikan |
| Permukaan Akhir | Tanah Presisi / Dipoles |
| Jenis pelumasan | Alur Oli Opsional |
| Proses Manufaktur | Perlakuan Panas Penggilingan Mesin CNC |
| Kustomisasi | OEM / ODM Tersedia |
Tiga Aspek Kustomisasi Utama, Disesuaikan dengan Kebutuhan Anda
Mencocokkan berbagai metode kustomisasi untuk memenuhi berbagai kebutuhan.
Manufaktur Presisi, Kualitas Luar Biasa
Panduan yang Tepat
Stripper Guide Sleeve ensures accurate cooperation with guide pillars, maintaining consistent alignment of stripper plates and reducing positioning errors during stamping and punching operations in industrial production.
Kontrol Gerak yang Ditingkatkan
It provides stable guidance for moving components, improving motion consistency and ensuring smooth operation throughout continuous die cycles in high-speed manufacturing environments.
Daya Tahan Struktural yang Kuat
Made from hardened steel materials, it withstands repeated impact loads and maintains structural integrity, ensuring reliable performance under long-term industrial usage conditions.
Mengurangi Keausan Permukaan
Precision-ground inner surfaces minimize contact abrasion, lowering wear rates between components and extending overall service life in demanding stamping applications.
Layanan Berkualitas, Waktu pengiriman yang dipersingkat
Dari tinjauan desain hingga pengiriman, Kami menyediakan tindak lanjut satu lawan satu khusus selama seluruh proses.
Konsultasi → Menyediakan Gambar → Tinjauan Desain & Penawaran → Pemrosesan Pesanan → Inspeksi Kualitas → Pengiriman Tepat Waktu → Tindak Lanjut Purna Jual
Keuntungan kami
Didukung oleh pengalaman teknik lebih dari 25 tahun, Tim kami menawarkan layanan komprehensif—mulai dari desain cetakan yang disesuaikan dan pemesinan presisi hingga produksi skala penuh—didukung oleh sistem jaminan kualitas yang kuat dan layanan pelanggan yang proaktif. Bersertifikat di bawah ISO9001, ISO14001, dan IATF 16949, Kami terus berupaya mencapai keunggulan dalam kualitas, inovasi, dan kepuasan pelanggan.
Lebih dari 100,000 unit tersedia, dengan pengiriman 2 jam untuk produk standar.
Menerapkan sistem inspeksi tiga tahap—pemeriksaan material awal, inspeksi dalam proses, dan inspeksi akhir.
Inventaris besar dan proses cepat, Menjamin pengiriman tepat waktu dengan inspeksi produk 100%.
Rentang Aplikasi
Pilihan utama di berbagai industri.
Pertanyaan yang diajukan
1. What is a Stripper Guide Sleeve used for?
It is used in stamping die systems to guide and stabilize the movement of stripper plates during punching operations.
2. How does a Stripper Guide Sleeve work?
It works with guide pillars to maintain precise alignment and smooth linear motion in die assemblies.
3. What materials are used for Stripper Guide Sleeve?
It is typically made from hardened steel or bearing steel for high strength and wear resistance.
4. Where is Stripper Guide Sleeve commonly applied?
It is widely used in automotive stamping, electronics manufacturing, hardware production, and progressive die systems.
5. Can Stripper Guide Sleeve be customized?
Iya, Dapat disesuaikan ukurannya, toleransi, material, and lubrication design according to application requirements.
