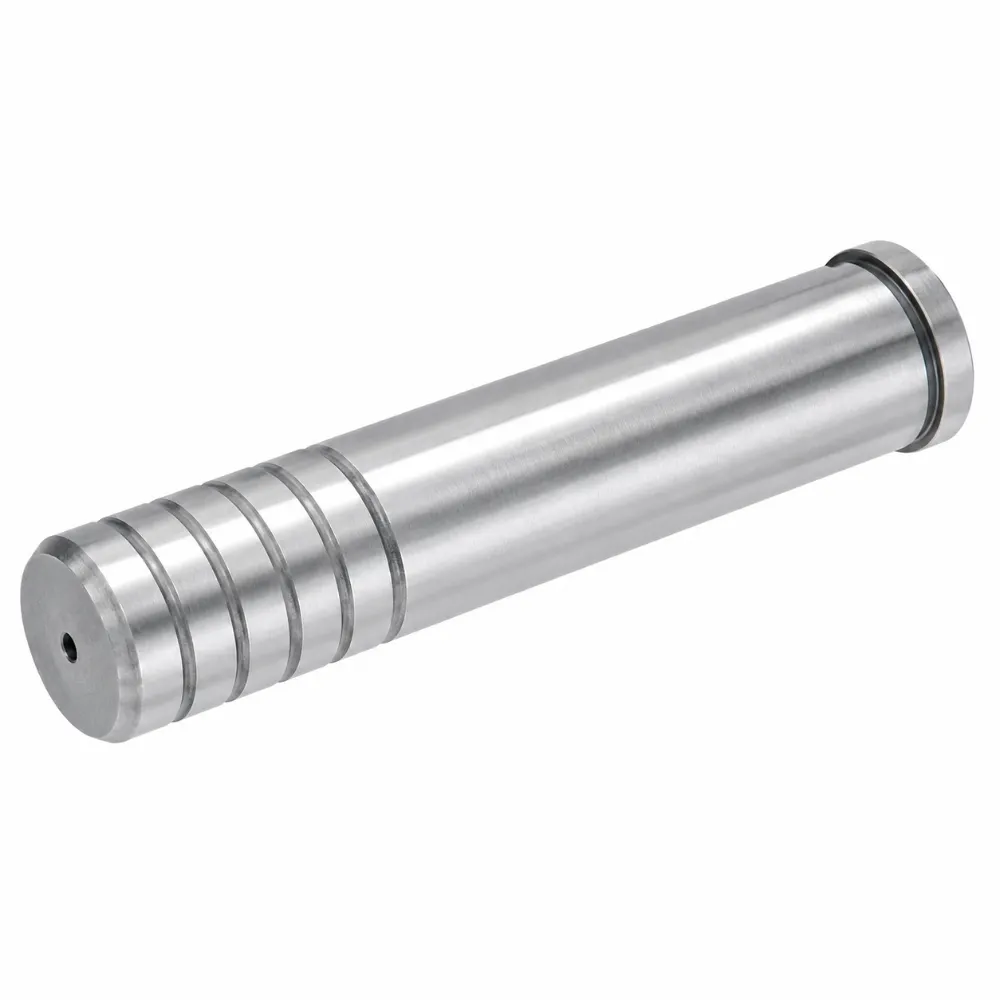

Pin Panduan Penari Telanjang
Stripper Guide Pin is developed for precision guiding applications in stamping tools and die assemblies. Its durable construction enables accurate positioning of stripper plate components while supporting smooth and controlled movement during production. Manufactured with strict quality standards, the guide pin delivers reliable mechanical performance and excellent resistance to long-term operational stress.
- Enhances Precision During Plate Movement: Supports controlled motion throughout stamping cycles.
- Maintains Accuracy Under Repeated Impact: Delivers dependable performance during continuous operation.
- Dioptimalkan Untuk Aplikasi Die Progresif: Suitable for demanding precision tooling systems.
- Supports Efficient High Volume Production: Helps improve productivity and process consistency.
Deskripsi Produk
Pendahuluan
Stripper Guide Pin is an essential component used in stamping dies, cetakan progresif, and precision tooling systems where accurate stripper plate movement is required. It helps guide and support the stripper plate throughout the stamping cycle, ensuring smooth operation and maintaining proper alignment between critical die components. Reliable guidance contributes to improved product consistency, reduced operational errors, and enhanced production efficiency in demanding manufacturing environments.
Manufactured from premium bearing steel and processed through precision machining, perlakuan panas, and grinding technologies, the Stripper Guide Pin offers outstanding dimensional accuracy and long-lasting durability. The hardened surface helps resist wear caused by repeated movement, while the precision-ground finish promotes smooth operation and minimizes friction. These characteristics allow the component to perform reliably during continuous production while helping protect surrounding tooling parts from excessive wear.
Stripper Guide Pins are widely applied in automotive component manufacturing, electronic stamping, produksi peralatan rumah tangga, hardware processing, and industrial metal forming operations. Tersedia dalam berbagai diameter, panjang, dan tingkat toleransi, they can be integrated into a wide range of die designs and tooling systems. Custom manufacturing options are also available to meet specific project requirements, providing dependable guiding solutions for precision stamping applications across multiple industries.
Spesifikasi
| Parameter | Spesifikasi |
|---|---|
| Nama Produk | Pin Panduan Penari Telanjang |
| Bahan | SUJ2 / GCr15 |
| Kekerasan | HRC 58-62 |
| Permukaan Akhir | Tanah Presisi |
| Kisaran Diameter | Ø6-Ø25 mm |
| Rentang panjang | 20-250 milimeter |
| Kelurusan | ≤0.003 mm/100 mm |
| Perawatan Permukaan | Chrome Keras Opsional |
| Metode Instalasi | Tekan Fit |
| Kelas Presisi | Presisi Tinggi |
| Layanan Kustom | OEM & ODM |
Tiga Aspek Kustomisasi Utama, Disesuaikan dengan Kebutuhan Anda
Mencocokkan berbagai metode kustomisasi untuk memenuhi berbagai kebutuhan.
Manufaktur Presisi, Kualitas Luar Biasa
Kontrol Pelat Stripper yang Ditingkatkan
Provides accurate support for stripper plate movement, helping maintain consistent motion throughout stamping operations while contributing to improved process stability and product quality.
Integrasi Desain Ringkas
Engineered for efficient installation within limited tooling spaces, allowing seamless integration into complex die assemblies without compromising operational performance or reliability.
Performa Berulang yang Konsisten
Designed to perform reliably during continuous production cycles, helping maintain guiding accuracy and operational consistency even under frequent repetitive stamping conditions.
Mengurangi Keausan Interaksi Komponen
Helps minimize direct contact between critical tooling parts, lowering wear rates and supporting smoother operation throughout long-term manufacturing applications.
Layanan Berkualitas, Waktu pengiriman yang dipersingkat
Dari tinjauan desain hingga pengiriman, Kami menyediakan tindak lanjut satu lawan satu khusus selama seluruh proses.
Konsultasi → Menyediakan Gambar → Tinjauan Desain & Penawaran → Pemrosesan Pesanan → Inspeksi Kualitas → Pengiriman Tepat Waktu → Tindak Lanjut Purna Jual
Keuntungan kami
Didukung oleh pengalaman teknik lebih dari 25 tahun, Tim kami menawarkan layanan komprehensif—mulai dari desain cetakan yang disesuaikan dan pemesinan presisi hingga produksi skala penuh—didukung oleh sistem jaminan kualitas yang kuat dan layanan pelanggan yang proaktif. Bersertifikat di bawah ISO9001, ISO14001, dan IATF 16949, Kami terus berupaya mencapai keunggulan dalam kualitas, inovasi, dan kepuasan pelanggan.
Lebih dari 100,000 unit tersedia, dengan pengiriman 2 jam untuk produk standar.
Menerapkan sistem inspeksi tiga tahap—pemeriksaan material awal, inspeksi dalam proses, dan inspeksi akhir.
Inventaris besar dan proses cepat, Menjamin pengiriman tepat waktu dengan inspeksi produk 100%.
Rentang Aplikasi
Pilihan utama di berbagai industri.
Pertanyaan yang diajukan
What is a Stripper Guide Pin?
A Stripper Guide Pin is a precision guiding component used in stamping dies to control the movement of the stripper plate. It helps maintain accurate alignment and smooth operation during the stamping process.
What materials are used for Stripper Guide Pins?
Stripper Guide Pins are commonly manufactured from high-quality bearing steel such as SUJ2 or GCr15. Bahan-bahan ini memberikan kekerasan yang sangat baik, ketahanan aus, dan masa pakai yang panjang.
Where are Stripper Guide Pins typically used?
Cetakan ini banyak digunakan dalam cetakan progresif, cetakan stamping presisi, perkakas otomotif, manufaktur komponen elektronik, peralatan pembentukan logam, and industrial punching applications.
Can Stripper Guide Pins be customized?
Iya. Diameter khusus, panjang, toleransi, perlakuan permukaan, and material specifications can be produced according to customer drawings or specific tooling requirements.
How do Stripper Guide Pins improve die performance?
By providing stable and accurate guidance for the stripper plate, they help reduce misalignment, minimize component wear, meningkatkan konsistensi produksi, and extend tooling service life.
