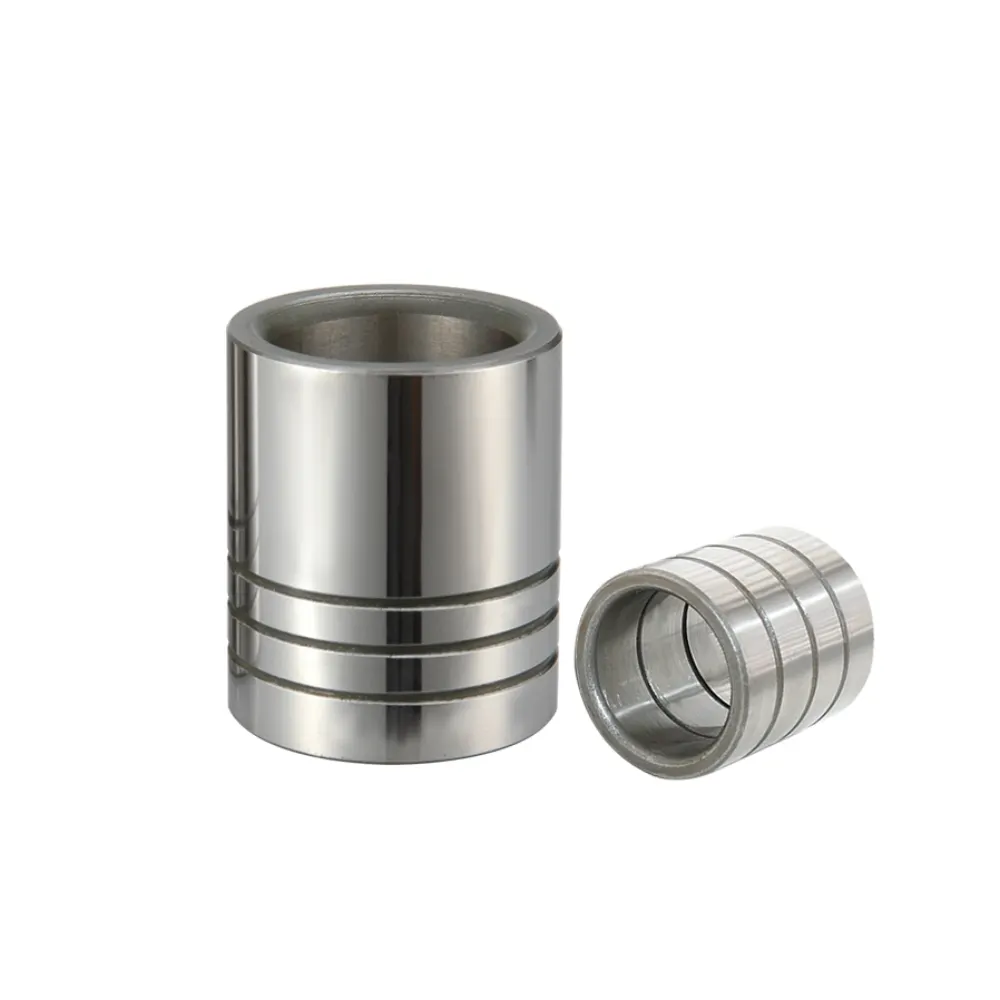

Bushing Pemandu Tanpa Bahu
Shoulderless Guide Bushing is a compact mold alignment component designed to support precise movement and stable guiding in tooling systems. Its flange-free structure allows flexible installation in limited spaces. It helps maintain consistent mold operation, reduces alignment errors, and performs reliably in stamping and injection molding applications requiring high precision and efficient space utilization.
- Space Optimization: Cocok dengan struktur cetakan terbatas
- Fast Installation: Menyederhanakan proses perakitan
- Stable Operation: Mempertahankan kinerja yang konsisten
- Low Maintenance: Mengurangi frekuensi servis
Deskripsi Produk
Pendahuluan
Shoulderless Guide Bushing is a precision-engineered mold component designed without a flange structure to provide flexible installation and accurate alignment in stamping dies, injection molds, and industrial tooling systems. It works together with guide pillars to maintain stable linear motion, ensuring consistent positioning of mold components during punching and forming operations. Its compact design makes it especially suitable for applications with limited installation space.
Manufactured from high-quality bearing steel or hardened tool steel, Shoulderless Guide Bushing delivers excellent wear resistance, high mechanical strength, dan masa pakai yang panjang. Advanced CNC machining, precision internal grinding, and controlled heat treatment processes ensure tight dimensional tolerances up to ±0.002 mm. The finely polished inner surface reduces friction between guiding components, enabling smooth and stable motion even under high-speed and continuous production conditions.
Shoulderless Guide Bushing is widely used in precision mold systems across automotive manufacturing, electronics production, household appliance tooling, progressive die systems, and precision hardware industries. It supports both standard and customized mold structures, offering flexible options in inner diameter, outer diameter, panjang, lubrication grooves, and material selection. This adaptability ensures reliable performance, improved efficiency, and long-term stability in demanding industrial environments where compact design and high precision are required.
Spesifikasi
| Barang | Deskripsi |
|---|---|
| Nama Produk | Bushing Pemandu Tanpa Bahu |
| Jenis Struktur | Tipe Flangeless / Lurus |
| Bahan | Baja Bantalan / Baja Perkakas yang Dikeraskan |
| Kekerasan | HRC 58–62 |
| Toleransi | ±0.002 mm |
| Diameter Dalam | Standar atau Disesuaikan |
| Diameter Luar | Standar atau Disesuaikan |
| Panjang | Disesuaikan |
| Permukaan Akhir | Tanah Presisi / Dipoles |
| Jenis pelumasan | Alur Oli Opsional |
| Proses Manufaktur | Perlakuan Panas Penggilingan Mesin CNC |
| Kustomisasi | OEM / ODM Tersedia |
Tiga Aspek Kustomisasi Utama, Disesuaikan dengan Kebutuhan Anda
Matching different customization methods to meet various requirements.
Manufaktur Presisi, Kualitas Luar Biasa
Desain Instalasi Ringkas
Shoulderless Guide Bushing eliminates the flange structure, allowing easier installation in tight mold spaces. It helps optimize layout efficiency while maintaining precise alignment in stamping and injection mold systems.
Presisi Penyelarasan Tinggi
It ensures accurate cooperation with guide pillars, maintaining stable positioning of mold components and reducing deviation during high-speed forming and continuous production cycles.
Ketahanan aus yang sangat baik
Manufactured from hardened steel materials, it provides strong resistance to abrasion and deformation, ensuring long-term durability and stable performance under heavy industrial load conditions.
Performa Pemandu Mulus
Precision internal grinding reduces friction between moving parts, enabling smooth linear motion and improving overall operational stability in mold guiding systems.
Layanan Berkualitas, Waktu pengiriman yang dipersingkat
Dari tinjauan desain hingga pengiriman, Kami menyediakan tindak lanjut satu lawan satu khusus selama seluruh proses.
Konsultasi → Menyediakan Gambar → Tinjauan Desain & Penawaran → Pemrosesan Pesanan → Inspeksi Kualitas → Pengiriman Tepat Waktu → Tindak Lanjut Purna Jual
Keuntungan kami
Didukung oleh pengalaman teknik lebih dari 25 tahun, Tim kami menawarkan layanan komprehensif—mulai dari desain cetakan yang disesuaikan dan pemesinan presisi hingga produksi skala penuh—didukung oleh sistem jaminan kualitas yang kuat dan layanan pelanggan yang proaktif. Bersertifikat di bawah ISO9001, ISO14001, dan IATF 16949, Kami terus berupaya mencapai keunggulan dalam kualitas, inovasi, dan kepuasan pelanggan.
Lebih dari 100,000 unit tersedia, dengan pengiriman 2 jam untuk produk standar.
Menerapkan sistem inspeksi tiga tahap—pemeriksaan material awal, inspeksi dalam proses, dan inspeksi akhir.
Inventaris besar dan proses cepat, Menjamin pengiriman tepat waktu dengan inspeksi produk 100%.
Rentang Aplikasi
Pilihan utama di berbagai industri.
Pertanyaan yang diajukan
1. What is a Shoulderless Guide Bushing used for?
It is used in mold systems to provide precise alignment and smooth linear guiding without a flange structure.
2. What is the advantage of a shoulderless design?
The flange-free design allows easier installation in compact mold structures with limited space.
3. What materials are used for Shoulderless Guide Bushing?
It is typically made from hardened steel, bearing steel, or other wear-resistant industrial alloys.
4. Where is Shoulderless Guide Bushing commonly applied?
It is widely used in stamping dies, injection molds, automotive parts, elektronika, and precision tooling systems.
5. Can Shoulderless Guide Bushing be customized?
Iya, it can be customized in size, tolerance, material, and lubrication requirements based on application needs.
