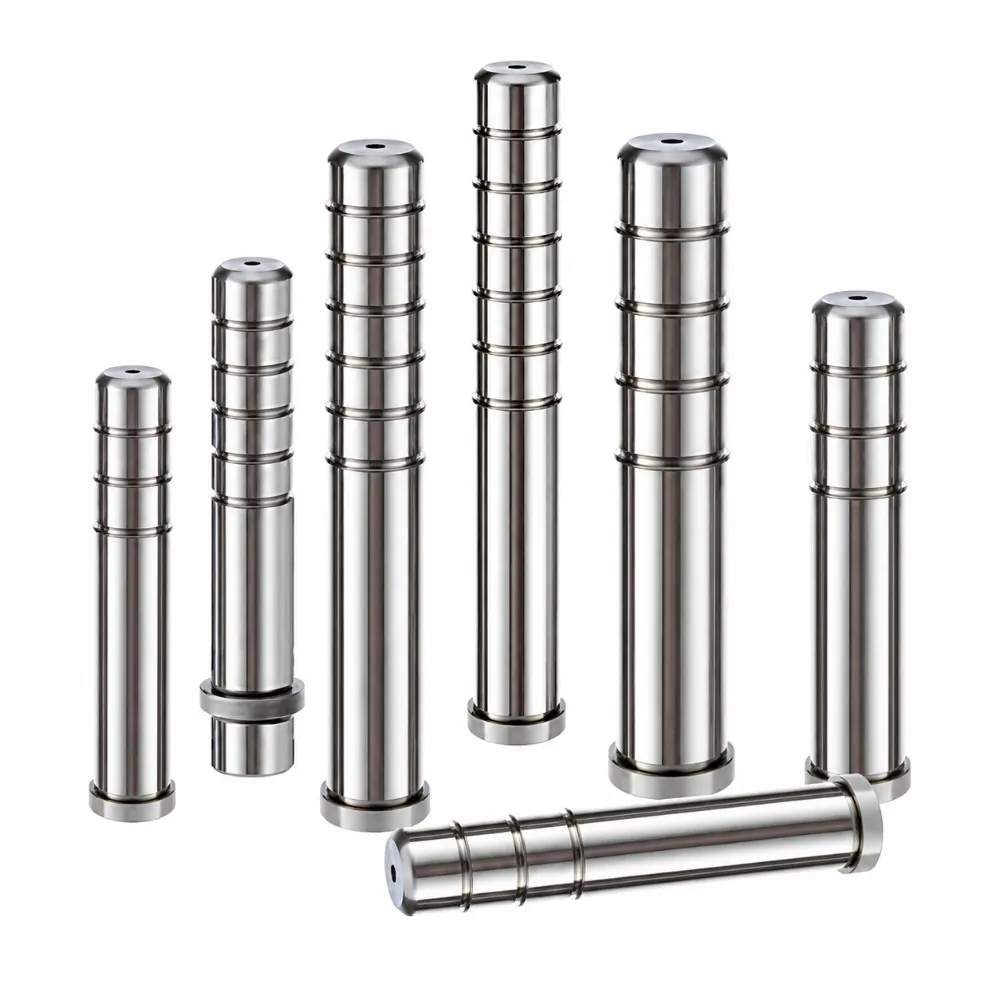

Stamping Logam Pos Panduan
Metal Stamping Die Guide Posts are designed to provide dependable guidance and structural support for precision die assemblies. Manufactured from premium-grade steel and processed with advanced machining technology, they deliver smooth operation and excellent resistance to deformation during repeated production cycles. These components help improve die stability, increase production consistency, and protect critical tooling parts from premature damage. Suitable for a wide range of metal forming and stamping applications, they offer reliable performance in both standard and customized tooling systems.
- Optimized Surface Hardness Performance: Improves durability against continuous friction effectively.
- Stable Operation Under High Speeds: Maintains smooth guidance during rapid stamping.
- Precision Ground For Consistency: Ensures uniform movement across production cycles.
- Adaptable To Diverse Tooling Systems: Supports multiple industrial die configurations reliably.
Deskripsi Produk
Pendahuluan
Metal Stamping Die Guide Post is an essential component used in stamping dies, cetakan progresif, dan sistem perkakas presisi. It is designed to ensure accurate alignment between the upper and lower die sections during production, helping to improve stamping accuracy and maintain consistent product quality. Manufactured from high-quality bearing steel, the guide post offers excellent dimensional stability, gerakan halus, and reliable performance in demanding industrial environments.
Through precision grinding, perlakuan panas, dan proses penyelesaian permukaan, the guide post achieves outstanding hardness, ketahanan aus, dan daya tahan. Its robust construction helps reduce friction and component wear, extending the service life of both the die set and related tooling components. The precision-guided movement also minimizes alignment errors, reducing downtime and improving overall manufacturing efficiency.
Metal Stamping Die Guide Posts are widely used in automotive parts manufacturing, produksi elektronik, home appliance components, aerospace applications, metal fabrication, and industrial equipment industries. Tersedia dalam berbagai diameter, panjang, and installation styles, these guide posts can meet different tooling requirements and industry standards. Ukuran khusus, bahan-bahan, and surface treatments are also available to support OEM and ODM projects, providing reliable solutions for precision stamping and forming applications worldwide.
Spesifikasi
| Parameter | Spesifikasi |
|---|---|
| Nama Produk | Stamping Logam Pos Panduan |
| Bahan | SUJ2 / GCr15 Baja Bantalan |
| Permukaan Akhir | Tanah Presisi & dipoles |
| Kekerasan | HRC 58-62 |
| Toleransi | ±0.005 mm |
| Kelurusan | ≤0.003 mm/100 mm |
| Kisaran Diameter | Ø10 mm – Ø80 mm |
| Rentang panjang | 50 mm – 500 mm |
| Perawatan Permukaan | Hard Chrome Plating (Opsional) |
| Jenis Pemandu | Bantalan Polos / Bantalan Bola |
| Jenis Instalasi | Tipe Press-Fit / Bahu |
| Pelumasan | Alur Oli Opsional |
| Standar | DARI, JIS, MISUMI Standard |
| Kehidupan pelayanan | Penggunaan Industri Jangka Panjang |
| Kustomisasi | OEM & ODM tersedia |
Tiga Aspek Kustomisasi Utama, Disesuaikan dengan Kebutuhan Anda
Mencocokkan berbagai metode kustomisasi untuk memenuhi berbagai kebutuhan.
Manufaktur Presisi, Kualitas Luar Biasa
Akurasi Penyelarasan Unggul
Engineered with tight manufacturing tolerances to maintain precise die positioning, helping reduce dimensional variation, meningkatkan kemampuan berulang, and ensure consistent stamping performance throughout production cycles.
Kapasitas Beban yang Ditingkatkan
Designed to withstand continuous high-pressure operations, providing stable guidance under demanding working conditions while supporting heavy-duty stamping and forming applications effectively.
Pengurangan Persyaratan Pemeliharaan
The optimized surface finish and hardened structure minimize wear between moving components, lowering maintenance frequency and helping manufacturers reduce long-term operating costs.
Opsi Kustomisasi Fleksibel
Tersedia dalam berbagai diameter, panjang, gaya pemasangan, and material grades, allowing easy adaptation to various die set designs and specialized industrial requirements.
Layanan Berkualitas, Waktu pengiriman yang dipersingkat
Dari tinjauan desain hingga pengiriman, Kami menyediakan tindak lanjut satu lawan satu khusus selama seluruh proses.
Konsultasi → Menyediakan Gambar → Tinjauan Desain & Penawaran → Pemrosesan Pesanan → Inspeksi Kualitas → Pengiriman Tepat Waktu → Tindak Lanjut Purna Jual
Keuntungan kami
Didukung oleh pengalaman teknik lebih dari 25 tahun, Tim kami menawarkan layanan komprehensif—mulai dari desain cetakan yang disesuaikan dan pemesinan presisi hingga produksi skala penuh—didukung oleh sistem jaminan kualitas yang kuat dan layanan pelanggan yang proaktif. Bersertifikat di bawah ISO9001, ISO14001, dan IATF 16949, Kami terus berupaya mencapai keunggulan dalam kualitas, inovasi, dan kepuasan pelanggan.
Lebih dari 100,000 unit tersedia, dengan pengiriman 2 jam untuk produk standar.
Menerapkan sistem inspeksi tiga tahap—pemeriksaan material awal, inspeksi dalam proses, dan inspeksi akhir.
Inventaris besar dan proses cepat, Menjamin pengiriman tepat waktu dengan inspeksi produk 100%.
Rentang Aplikasi
Pilihan utama di berbagai industri.
Pertanyaan yang diajukan
1. What is a Metal Stamping Die Guide Post used for?
A Metal Stamping Die Guide Post is used to accurately align the upper and lower sections of a stamping die. It helps maintain precision during stamping operations, mengurangi keausan komponen, and improves overall tooling performance.
2. What materials are commonly used for guide posts?
Guide posts are typically manufactured from high-quality bearing steel such as SUJ2 or GCr15. These materials provide excellent hardness, ketahanan aus, and long service life in demanding industrial applications.
3. Can guide posts be customized to specific requirements?
Iya. Diameter khusus, panjang, gaya pemasangan, perlakuan permukaan, and tolerance requirements can be manufactured according to customer drawings or application specifications.
4. What industries use Metal Stamping Die Guide Posts?
These guide posts are widely used in automotive manufacturing, produksi elektronik, peralatan rumah tangga, aerospace components, metal fabrication, mesin industri, dan industri alat presisi.
5. How do I choose the correct guide post size?
The appropriate size depends on the die structure, persyaratan beban, operating speed, and tooling dimensions. Technical drawings or application details can help determine the most suitable guide post specification.
