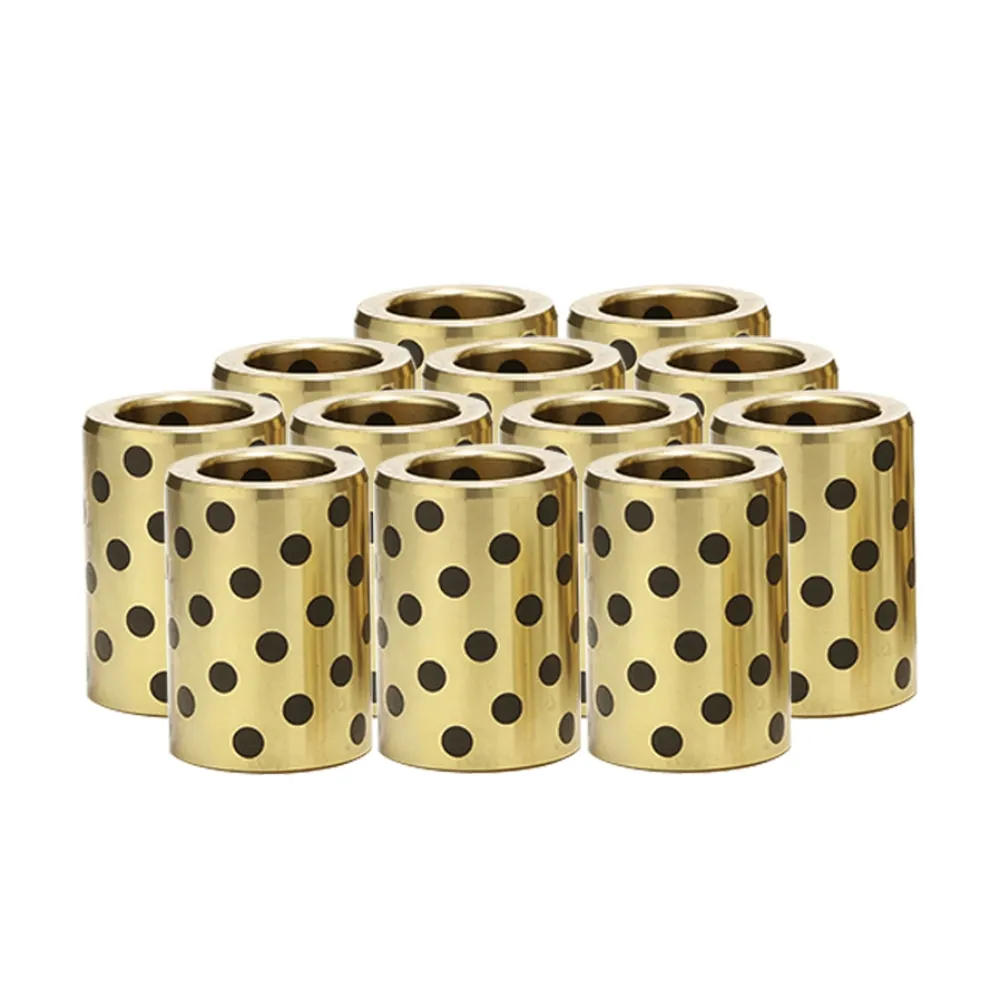

Bushing Panduan Cetakan Grafit
Graphite Mold Guide Bushing is designed for mold systems requiring stable guiding performance without external lubrication. It ensures accurate movement between mold components while maintaining smooth operation during continuous working cycles. The embedded graphite structure provides consistent lubrication support, helping reduce friction and improving operational reliability in demanding industrial environments where maintenance efficiency is important.
Deskripsi Produk
Pendahuluan
Graphite Mold Guide Bushing is a self-lubricating component used in mold systems to ensure precise alignment and smooth movement between guide pillars and mold plates. It helps maintain stable guiding performance during repeated operation cycles, reducing friction and improving positioning accuracy. This contributes to consistent molding quality and reliable performance in industrial production environments.
The product is manufactured using high-strength bronze combined with embedded graphite plugs, which provide continuous lubrication during operation without the need for external oil or grease. This structure enhances wear resistance, reduces maintenance requirements, and ensures stable performance under dry running and high-load conditions. Precision machining further improves dimensional accuracy and surface smoothness for long-term durability.
Graphite Mold Guide Bushing is widely used in injection mold bases, mencap ini, bingkai cetakan plastik, Sistem Pengecoran, cetakan otomotif, and industrial machinery equipment. It is suitable for applications where lubrication is difficult or maintenance access is limited. Kompatibel dengan standar internasional seperti MISUMI, HASCO, DME, DARI, dan ISO, Juga dapat disesuaikan sesuai gambar atau kebutuhan spesifik, making it an efficient and maintenance-free solution for improving mold performance and operational stability.
Spesifikasi
| Barang | Deskripsi |
|---|---|
| Nama Produk | Bushing Panduan Cetakan Grafit |
| Bahan | Perunggu (CuSn8 / CuAl10Ni5Fe4) |
| Jenis pelumasan | Pelumasan diri steker grafit padat |
| Jenis Struktur | Lurus / Bergelang / Bahu |
| Kekerasan | HB 70–120 (tergantung pada paduan) |
| Permukaan Akhir | Mesin presisi dengan sisipan grafit |
| Kondisi Kerja | Latihan kering, tidak memerlukan pelumasan eksternal |
| Kapasitas Beban | Beban tinggi dan operasi berkelanjutan cocok |
| Ukuran Kustom | Tersedia sesuai gambar |
Tiga Aspek Kustomisasi Utama, Disesuaikan dengan Kebutuhan Anda
Mencocokkan berbagai metode kustomisasi untuk memenuhi berbagai kebutuhan.
Manufaktur Presisi, Kualitas Luar Biasa
Sistem Pelumasan Diri Berkelanjutan
Graphite inserts provide uninterrupted lubrication during operation, eliminating external oil supply and maintaining consistent performance in long production cycles.
Mengurangi Ketergantungan Pemeliharaan
Oil-free design significantly decreases lubrication-related maintenance tasks, helping reduce downtime and improving overall equipment operational efficiency.
Kemampuan Dry Running yang Ditingkatkan
Special bronze-graphite structure supports stable operation without lubrication, ensuring reliable performance in environments where oil application is impractical.
Kinerja Masa Pakai yang Diperpanjang
Optimized material combination reduces wear rate under continuous friction, helping components maintain durability and stable function over extended use.
Layanan Berkualitas, Waktu pengiriman yang dipersingkat
Dari tinjauan desain hingga pengiriman, Kami menyediakan tindak lanjut satu lawan satu khusus selama seluruh proses.
Konsultasi → Menyediakan Gambar → Tinjauan Desain & Penawaran → Pemrosesan Pesanan → Inspeksi Kualitas → Pengiriman Tepat Waktu → Tindak Lanjut Purna Jual
Keuntungan kami
Didukung oleh pengalaman teknik lebih dari 25 tahun, Tim kami menawarkan layanan komprehensif—mulai dari desain cetakan yang disesuaikan dan pemesinan presisi hingga produksi skala penuh—didukung oleh sistem jaminan kualitas yang kuat dan layanan pelanggan yang proaktif. Bersertifikat di bawah ISO9001, ISO14001, dan IATF 16949, Kami terus berupaya mencapai keunggulan dalam kualitas, inovasi, dan kepuasan pelanggan.
Lebih dari 100,000 unit tersedia, dengan pengiriman 2 jam untuk produk standar.
Menerapkan sistem inspeksi tiga tahap—pemeriksaan material awal, inspeksi dalam proses, dan inspeksi akhir.
Inventaris besar dan proses cepat, Menjamin pengiriman tepat waktu dengan inspeksi produk 100%.
Rentang Aplikasi
Pilihan utama di berbagai industri.
Pertanyaan yang diajukan
1. What is a Graphite Mold Guide Bushing used for?
It is used in mold systems to guide and align moving components while providing self-lubrication for smooth operation.
2. How does the graphite lubrication work?
Embedded graphite plugs release lubricant gradually during operation, forming a low-friction surface layer.
3. Apakah perlu oli atau gemuk eksternal?
Tidak, Dirancang untuk operasi bebas minyak, reducing maintenance and improving efficiency.
4. Di mana istilah ini umum digunakan?
Cetakan ini banyak digunakan dalam cetakan injeksi, mencap ini, Cetakan Pengecoran, dan mesin industri.
5. Bisakah dikustomisasi?
Iya, we support OEM customization including size, struktur, and material based on drawings.
