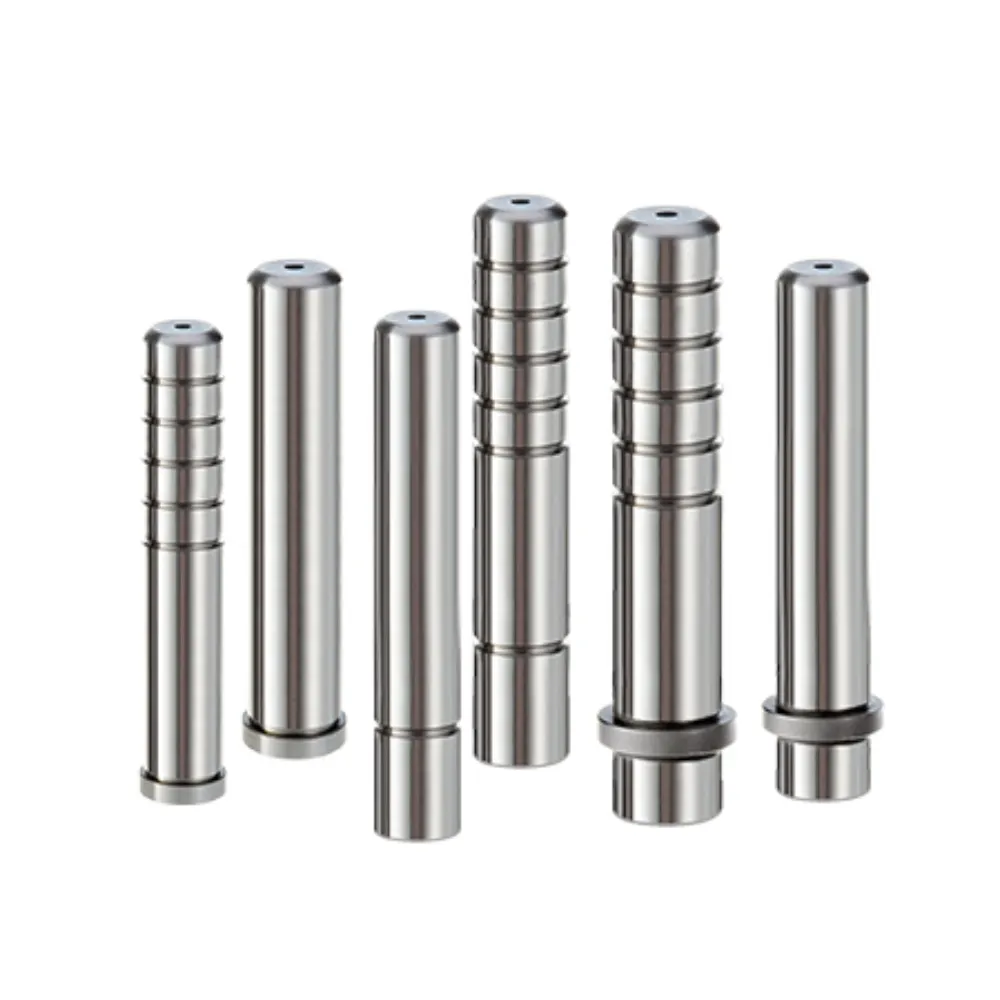

Pilar Panduan Pelat Ejektor
The ejector plate guide pillar is a key positioning element used in mold ejection systems to maintain controlled movement of ejector components. It ensures accurate alignment between moving plates during each molding cycle, supporting stable operation in injection molding equipment. Made from heat-treated alloy steel, it provides reliable structural strength and consistent performance under repeated stress. Its precision-finished surface helps reduce friction and supports efficient operation in automated industrial production environments requiring long-term stability.
- Precise Vertical Movement Guidance System: Memastikan kontrol lintasan pelat ejektor yang stabil
- High Structural Rigidity Performance: Mempertahankan kekuatan di bawah tekanan operasional terus menerus
- Minimized Friction Contact Interface: Mengurangi keausan selama siklus cetakan berulang
- Consistent Long Term Alignment: Menjamin akurasi pemosisian yang stabil dari waktu ke waktu
Deskripsi Produk
Pendahuluan
The ejector plate guide pillar is a precision-engineered mold component used to ensure accurate alignment and controlled movement of ejector and stripper plates in injection molding systems. It plays a key role in maintaining stability during mold opening and closing cycles, helping the ejector mechanism operate smoothly and consistently. This makes it an essential part of high-precision mold assemblies used in modern manufacturing environments.
Manufactured from hardened alloy steel with fine grinding processes, the ejector plate guide pillar offers excellent strength, ketahanan aus, dan stabilitas dimensi. Its smooth surface reduces friction between moving components, minimizing mechanical wear and improving the efficiency of mold operation. The robust structure ensures reliable performance even under high-speed and high-load production conditions, membuatnya cocok untuk penggunaan industri secara berkelanjutan.
The ejector plate guide pillar can be customized in diameter, panjang, and tolerance to meet specific mold design requirements. Sesuai dengan standar internasional seperti ISO, DARI, dan JIS, dan juga dapat diproduksi sesuai gambar OEM. Widely used in injection molds, automotive plastic parts, dan sistem alat industri presisi, it provides stable guiding performance and long service life in demanding production applications.
Spesifikasi
| Barang | Deskripsi |
|---|---|
| Nama Produk | Pilar Panduan Pelat Ejektor |
| Tipe | Pos Panduan Cetakan |
| Bahan | Baja SUJ2 / GCr15 / 100Cr6 / SKD |
| Kekerasan | HRC 58–62 |
| Perawatan Permukaan | Penggilingan presisi / perlakuan panas |
| Kelurusan | ≤ 0.005 mm |
| Kebulatan | ≤ 0.003 mm |
| Konsentrisitas | ≤ 0.01 mm |
| Rentang panjang | 100 mm – 1000 mm (dapat disesuaikan) |
| Toleransi | Standar ISO / DIN atau gambar OEM |
Tiga Aspek Kustomisasi Utama, Disesuaikan dengan Kebutuhan Anda
Mencocokkan berbagai metode kustomisasi untuk memenuhi berbagai kebutuhan.
Manufaktur Presisi, Kualitas Luar Biasa
Kontrol Penyelarasan Ejeksi Stabil
Ensures accurate positioning of ejector plates throughout mold cycles, maintaining consistent movement accuracy and reducing misalignment risks during repeated high-speed injection molding operations.
Distribusi Beban Mekanis yang Ditingkatkan
Evenly distributes operational forces across guiding surfaces, reducing localized stress concentration and enhancing structural stability under continuous mold working conditions.
Perlindungan Keausan Permukaan yang Ditingkatkan
Precision grinding and heat treatment improve surface hardness, reducing abrasion damage and maintaining long-term durability in high-friction mold environments.
Efisiensi Operasi Cetakan yang Dioptimalkan
Supports smoother ejector plate movement, reducing resistance and helping shorten cycle time in automated injection molding production systems.
Layanan Berkualitas, Waktu pengiriman yang dipersingkat
Dari tinjauan desain hingga pengiriman, Kami menyediakan tindak lanjut satu lawan satu khusus selama seluruh proses.
Konsultasi → Menyediakan Gambar → Tinjauan Desain & Penawaran → Pemrosesan Pesanan → Inspeksi Kualitas → Pengiriman Tepat Waktu → Tindak Lanjut Purna Jual
Keuntungan kami
Didukung oleh pengalaman teknik lebih dari 25 tahun, Tim kami menawarkan layanan komprehensif—mulai dari desain cetakan yang disesuaikan dan pemesinan presisi hingga produksi skala penuh—didukung oleh sistem jaminan kualitas yang kuat dan layanan pelanggan yang proaktif. Bersertifikat di bawah ISO9001, ISO14001, dan IATF 16949, Kami terus berupaya mencapai keunggulan dalam kualitas, inovasi, dan kepuasan pelanggan.
Lebih dari 100,000 unit tersedia, dengan pengiriman 2 jam untuk produk standar.
Menerapkan sistem inspeksi tiga tahap—pemeriksaan material awal, inspeksi dalam proses, dan inspeksi akhir.
Inventaris besar dan proses cepat, Menjamin pengiriman tepat waktu dengan inspeksi produk 100%.
Rentang Aplikasi
Pilihan utama di berbagai industri.
Pertanyaan yang diajukan
Q1: What is an ejector plate guide pillar used for?
It is used to guide and support ejector plates in injection molds, ensuring precise and stable movement during mold opening and closing.
Q2: What materials are used for this product?
Biasanya terbuat dari baja yang dikeraskan seperti GCr15, SUJ2, atau 100Cr6, menawarkan kekuatan tinggi dan ketahanan aus.
Q3: Bisakah dikustomisasi?
Iya, diameter, panjang, toleransi, and surface treatment can be customized according to different mold design requirements.
Q4: Is it compatible with international standards?
Iya, it is compatible with ISO, DARI, and JIS standards and can match most global mold base systems.
Q5: Di mana istilah ini umum digunakan?
It is widely used in injection molding, produksi suku cadang otomotif, cetakan presisi, dan sistem otomasi industri.
