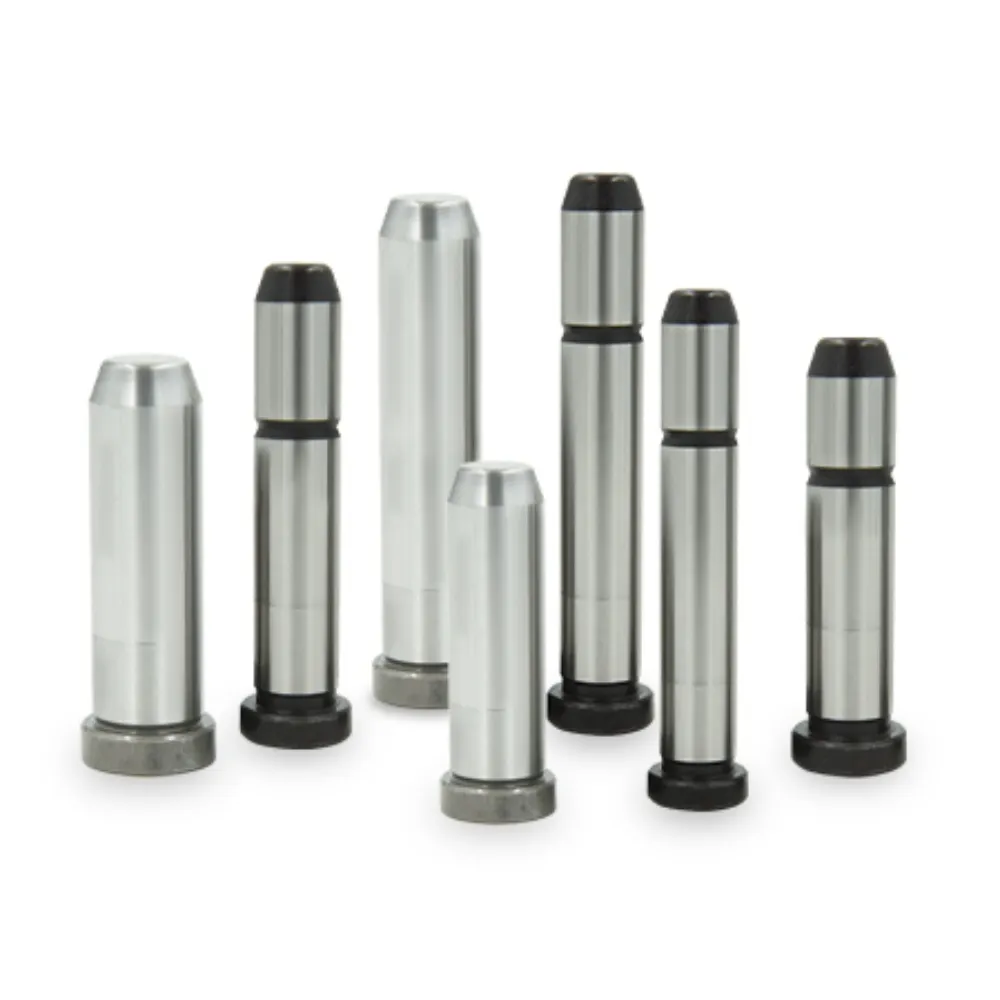

Pilar Panduan Miring Die Casting
The die casting angled guide pillar is a specialized component used in molds requiring controlled inclined motion. It supports precise guiding for side actions and core pulling systems in die casting equipment. Engineered from hardened steel, it offers strong rigidity and consistent performance under high-pressure operating conditions. Its angled design improves mechanical coordination within complex mold structures. With fine surface finishing, it ensures smooth contact with mating parts and reliable alignment in continuous industrial production environments.
- Precision Angle Path Stability: Mempertahankan gerakan yang konsisten selama siklus operasi
- Enhanced Core Pulling Efficiency: Meningkatkan kontrol kinerja aksi samping yang mulus
- Reduced Mold Wear Impact: Meminimalkan kerusakan gesekan pada permukaan kontak
- High Strength Load Resistance: Mendukung sistem die casting tekanan berat
Deskripsi Produk
Pendahuluan
The die casting angled guide pillar is a precision-engineered mold component designed to support directional guiding in complex die casting systems. It is specifically used in molds that require inclined or non-linear movement, ensuring accurate alignment between moving parts during opening and closing operations. This structure is essential for core-pulling and side-action mechanisms commonly found in advanced die casting applications.
Manufactured from high-strength hardened alloy steel, the angled guide pillar provides excellent durability and resistance to wear under high pressure and continuous operation. Its precision-ground surface reduces friction and ensures smooth interaction with guide components, helping maintain stable performance even in demanding production environments. The optimized angled design improves motion control and reduces mechanical stress on mold assemblies.
This component can be customized in angle, panjang, diameter, and tolerance to meet different tooling requirements. It is compatible with international mold standards such as ISO and DIN, dan juga dapat diproduksi sesuai gambar OEM. Widely used in automotive parts manufacturing, aluminum and zinc die casting, dan perkakas industri presisi, the die casting angled guide pillar delivers reliable alignment and long-lasting performance in modern production systems.
Spesifikasi
| Barang | Deskripsi |
|---|---|
| Nama Produk | Pilar Panduan Miring Die Casting |
| Tipe | Tiang Panduan Miring / Miring |
| Bahan | Baja SUJ2 / GCr15 / 100Cr6 / SKD |
| Kekerasan | HRC 58–62 |
| Perawatan Permukaan | Penggilingan presisi / perlakuan panas |
| Rentang Sudut | Kustom (commonly 10°–45°) |
| Kelurusan | ≤ 0.005 mm |
| Kebulatan | ≤ 0.003 mm |
| Rentang panjang | 100 mm – 800 mm (dapat disesuaikan) |
| Toleransi | Standar ISO / DIN atau OEM |
Tiga Aspek Kustomisasi Utama, Disesuaikan dengan Kebutuhan Anda
Mencocokkan berbagai metode kustomisasi untuk memenuhi berbagai kebutuhan.
Manufaktur Presisi, Kualitas Luar Biasa
Kontrol Gerak Sudut yang Dioptimalkan
The angled structure enables precise directional movement, ensuring accurate coordination between core pulling components and improving mold synchronization during complex die casting cycles.
Keseimbangan Beban Struktural yang Ditingkatkan
Force is distributed more evenly along the inclined guide path, reducing stress concentration and enhancing overall stability of high-pressure die casting mold assemblies.
Pemasangan Perakitan Presisi Tinggi
Machined with tight tolerances, the guide pillar ensures accurate matching with corresponding components, minimizing deviation and maintaining consistent mold positioning accuracy.
Keandalan Kinerja yang Diperluas
Heat-treated alloy steel construction provides strong fatigue resistance, ensuring dependable operation and stable guiding performance under long-term continuous industrial production conditions.
Layanan Berkualitas, Waktu pengiriman yang dipersingkat
Dari tinjauan desain hingga pengiriman, Kami menyediakan tindak lanjut satu lawan satu khusus selama seluruh proses.
Konsultasi → Menyediakan Gambar → Tinjauan Desain & Penawaran → Pemrosesan Pesanan → Inspeksi Kualitas → Pengiriman Tepat Waktu → Tindak Lanjut Purna Jual
Keuntungan kami
Didukung oleh pengalaman teknik lebih dari 25 tahun, Tim kami menawarkan layanan komprehensif—mulai dari desain cetakan yang disesuaikan dan pemesinan presisi hingga produksi skala penuh—didukung oleh sistem jaminan kualitas yang kuat dan layanan pelanggan yang proaktif. Bersertifikat di bawah ISO9001, ISO14001, dan IATF 16949, Kami terus berupaya mencapai keunggulan dalam kualitas, inovasi, dan kepuasan pelanggan.
Lebih dari 100,000 unit tersedia, dengan pengiriman 2 jam untuk produk standar.
Menerapkan sistem inspeksi tiga tahap—pemeriksaan material awal, inspeksi dalam proses, dan inspeksi akhir.
Inventaris besar dan proses cepat, Menjamin pengiriman tepat waktu dengan inspeksi produk 100%.
Rentang Aplikasi
Pilihan utama di berbagai industri.
Pertanyaan yang diajukan
Q1: What is a die casting angled guide pillar used for?
It is used in die casting molds to guide inclined movement, especially in core pulling and side-action mechanisms.
Q2: Material apa saja yang umum digunakan?
Biasanya dibuat dari baja paduan yang dikeraskan seperti GCr15, SUJ2, atau 100Cr6 untuk kekuatan tinggi dan ketahanan aus.
Q3: Can the angle be customized?
Iya, the angle can be customized according to mold design requirements, usually ranging from 10° to 45° or as needed.
Q4: Apakah kompatibel dengan sistem cetakan standar?
Iya, it can be manufactured according to ISO, DARI, and JIS standards and is compatible with most international die casting systems.
Q5: What industries use angled guide pillars?
Alat ini banyak digunakan pada suku cadang otomotif, aluminum and zinc die casting, precision tooling, and industrial manufacturing applications.
