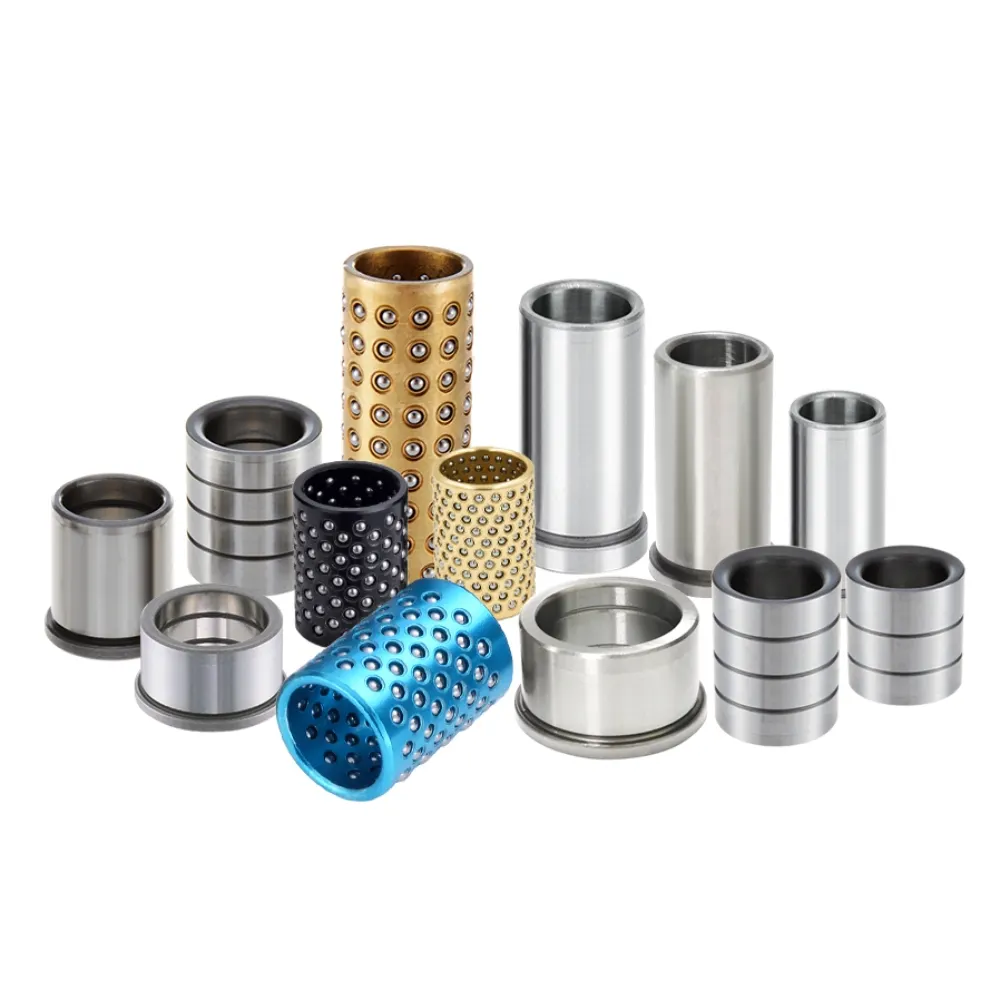

Bushing Panduan Mati Stamping Dingin
Cold Stamping Die Guide Bushing is designed for precision alignment in stamping and punching die systems, ensuring controlled motion between guiding components during high-impact operations. It supports stable die performance under continuous production conditions, helping improve forming accuracy and operational consistency. With robust construction and reliable guiding characteristics, it is widely used in industrial metal processing environments requiring durability and precise movement control.
Deskripsi Produk
Pendahuluan
Cold Stamping Die Guide Bushing is a precision component used in cold stamping and punching die systems to maintain accurate alignment between guide pillars and die assemblies. It ensures smooth and stable guiding performance during repeated stamping cycles, helping reduce mechanical deviation and improving overall positioning accuracy. This contributes to higher stamping consistency and reliable production quality in metal forming operations.
Produk ini dibuat dari material berkualitas tinggi seperti baja bantalan, baja paduan, atau baja alat yang dikeraskan, and undergoes heat treatment and precision grinding processes. These manufacturing steps provide excellent hardness, strong impact resistance, and stable dimensional accuracy under continuous high-load and repetitive punching conditions. The finely finished inner surface reduces friction and ensures smooth guiding performance, supporting long-term durability in demanding industrial environments.
Cold Stamping Die Guide Bushing is widely used in cold stamping dies, punching and blanking tools, sistem cetakan progresif, metal sheet forming molds, automotive stamping components, electrical hardware dies, and high-speed press equipment. It is suitable for applications requiring high precision and strong impact resistance. Kompatibel dengan standar internasional seperti MISUMI, HASCO, DME, DARI, dan ISO, it can also be customized according to drawings or specific requirements, making it a reliable solution for improving die performance, extending service life, and ensuring stable production efficiency.
Spesifikasi
| Barang | Deskripsi |
|---|---|
| Nama Produk | Bushing Panduan Mati Stamping Dingin |
| Bahan | SUJ2, GCr15, SKD11, Tool Steel |
| Kekerasan | HRC 58–62 |
| Perawatan Permukaan | Penggilingan presisi / Lapisan anti karat |
| Jenis Struktur | Lurus / Bergelang / Tipe bahu |
| Toleransi | Standar pemesinan presisi tinggi |
| Pelumasan | Alur oli / Pelumas sendiri opsional |
| Kisaran Ukuran | Tersedia ukuran standar dan khusus |
| Kehidupan pelayanan | Daya tahan siklus panjang di bawah beban benturan |
Tiga Aspek Kustomisasi Utama, Disesuaikan dengan Kebutuhan Anda
Mencocokkan berbagai metode kustomisasi untuk memenuhi berbagai kebutuhan.
Manufaktur Presisi, Kualitas Luar Biasa
Performa Ketahanan Benturan yang Ditingkatkan
Material structure withstands repeated high-force stamping impacts, maintaining stable guiding accuracy and reducing deformation under extreme working conditions.
Peningkatan Konsistensi Penyelarasan Die
Ensures precise positioning between die components during high-speed stamping cycles, reducing deviation and improving forming accuracy in production processes.
Kontrol kelelahan permukaan yang dioptimalkan
Heat-treated surface layer minimizes micro-crack formation, extending service life under continuous punching and repetitive mechanical stress conditions.
Kemampuan Operasi Beban Tinggi yang Stabil
Maintains structural integrity under heavy load stamping environments, supporting reliable performance in long-term industrial manufacturing applications.
Layanan Berkualitas, Waktu pengiriman yang dipersingkat
Dari tinjauan desain hingga pengiriman, Kami menyediakan tindak lanjut satu lawan satu khusus selama seluruh proses.
Konsultasi → Menyediakan Gambar → Tinjauan Desain & Penawaran → Pemrosesan Pesanan → Inspeksi Kualitas → Pengiriman Tepat Waktu → Tindak Lanjut Purna Jual
Keuntungan kami
Didukung oleh pengalaman teknik lebih dari 25 tahun, Tim kami menawarkan layanan komprehensif—mulai dari desain cetakan yang disesuaikan dan pemesinan presisi hingga produksi skala penuh—didukung oleh sistem jaminan kualitas yang kuat dan layanan pelanggan yang proaktif. Bersertifikat di bawah ISO9001, ISO14001, dan IATF 16949, Kami terus berupaya mencapai keunggulan dalam kualitas, inovasi, dan kepuasan pelanggan.
Lebih dari 100,000 unit tersedia, dengan pengiriman 2 jam untuk produk standar.
Menerapkan sistem inspeksi tiga tahap—pemeriksaan material awal, inspeksi dalam proses, dan inspeksi akhir.
Inventaris besar dan proses cepat, Menjamin pengiriman tepat waktu dengan inspeksi produk 100%.
Rentang Aplikasi
Pilihan utama di berbagai industri.
Pertanyaan yang diajukan
1. What is a Cold Stamping Die Guide Bushing used for?
It is used in cold stamping and punching die systems to guide moving components and maintain precise alignment during operation.
2. Material apa saja yang umum digunakan?
Material umum meliputi baja bantalan, baja paduan, and hardened tool steel for high strength and wear resistance.
3. Is it suitable for high-impact stamping applications?
Iya, it is designed to withstand repeated impact loads and continuous stamping cycles while maintaining guiding accuracy.
4. Which industries commonly use this product?
Metode ini banyak digunakan dalam stamping otomotif, metal forming, hardware manufacturing, elektronika, dan aplikasi alat industri.
5. Can it be customized according to drawings?
Iya, OEM and custom manufacturing services are available for dimensions, bahan-bahan, and special design requirements.
