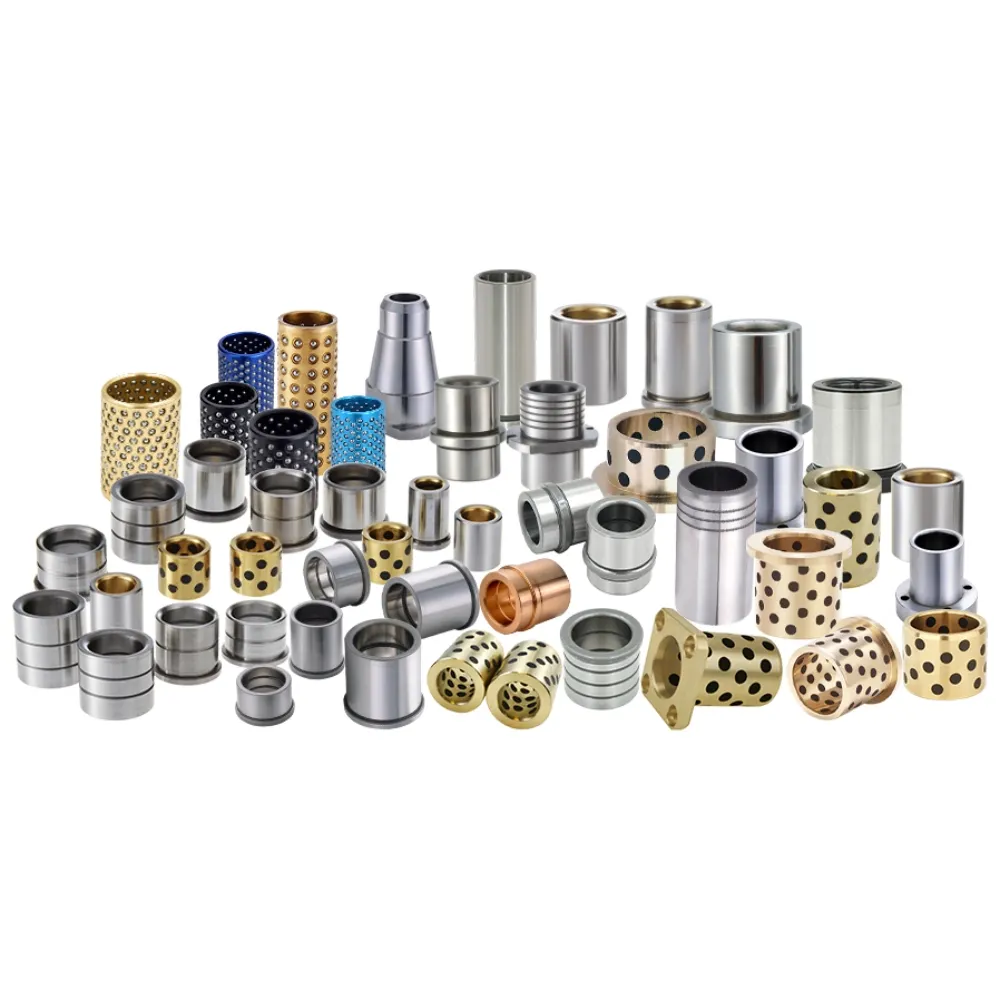

Bushing Panduan Cetakan Otomotif
Automotive Mold Guide Bushing is a guiding element used in automotive tooling systems to support precise movement of mold components. It ensures consistent alignment between guide pillars and mold structures during repeated operation. Designed for durability and stable performance, it helps improve production reliability in automotive manufacturing environments with demanding cycle requirements and strict quality standards.
- Efisiensi Keseimbangan Beban yang Ditingkatkan: distributes pressure evenly across surfaces
- Mengurangi Panas Gesekan Operasional: limits heat generation during movement
- Daya Tahan Siklus Panjang yang Stabil: maintains function over extended production runs
- Kontrol Kontak Permukaan yang Ditingkatkan: improves smoothness between mating parts
Deskripsi Produk
Pendahuluan
Automotive Mold Guide Bushing is a precision component used in automotive mold systems to ensure accurate alignment between guide pillars and mold plates. It supports stable guiding movement during repeated mold opening and closing cycles, reducing friction and preventing positional deviation. This helps maintain consistent dimensional accuracy and high-quality output in automotive parts manufacturing.
The product is manufactured from high-grade materials such as bearing steel, baja paduan, atau perunggu, diikuti oleh perlakuan panas dan proses penggilingan presisi. These manufacturing steps ensure high hardness, ketahanan aus yang sangat baik, and stable mechanical performance under continuous high-load conditions. The finely finished inner surface allows smooth sliding performance, even in high-speed and long-cycle production environments.
Automotive Mold Guide Bushing is widely applied in automotive interior and exterior plastic parts molds, bumper and trim molds, lighting component molds, rumah elektronik, and precision stamping dies. It is also used in automated production systems for vehicle components. Kompatibel dengan standar internasional seperti MISUMI, HASCO, DME, DARI, dan ISO, it can be customized according to drawings or special requirements. Dengan performa andal dan masa pakai yang panjang, it is an essential part for improving mold efficiency, mengurangi biaya perawatan, and ensuring stable automotive production quality.
Spesifikasi
| Barang | Deskripsi |
|---|---|
| Nama Produk | Bushing Panduan Cetakan Otomotif |
| Bahan | SUJ2, GCr15, SKD11, Perunggu |
| Kekerasan | HRC 58–62 |
| Perawatan Permukaan | Penggilingan presisi / Lapisan anti karat |
| Jenis Struktur | Lurus / Bergelang / Tipe bahu |
| Toleransi | Standar pemesinan presisi tinggi |
| Pelumasan | Alur oli / Pelumas sendiri opsional |
| Kisaran Ukuran | Tersedia ukuran standar dan khusus |
| Kehidupan pelayanan | Daya tahan siklus panjang di bawah beban tinggi |
Tiga Aspek Kustomisasi Utama, Disesuaikan dengan Kebutuhan Anda
Mencocokkan berbagai metode kustomisasi untuk memenuhi berbagai kebutuhan.
Manufaktur Presisi, Kualitas Luar Biasa
Kekakuan Struktural yang Ditingkatkan
Reinforced design improves resistance to deformation under heavy mechanical stress, ensuring stable alignment performance in long-term automotive mold production environments.
Ketahanan Getaran Tinggi
Effectively absorbs operational vibration during rapid mold cycling, helping maintain consistent guiding accuracy and reducing mechanical impact on surrounding components.
Stabilitas Termal yang Dioptimalkan
Maintains dimensional consistency under temperature fluctuations, ensuring reliable performance during continuous high-speed automotive molding processes.
Kesesuaian Presisi Perakitan yang Ditingkatkan
Machined to tight tolerances for accurate installation, reducing fitting errors and ensuring seamless compatibility with automotive mold base systems.
Layanan Berkualitas, Waktu pengiriman yang dipersingkat
Dari tinjauan desain hingga pengiriman, Kami menyediakan tindak lanjut satu lawan satu khusus selama seluruh proses.
Konsultasi → Menyediakan Gambar → Tinjauan Desain & Penawaran → Pemrosesan Pesanan → Inspeksi Kualitas → Pengiriman Tepat Waktu → Tindak Lanjut Purna Jual
Keuntungan kami
Didukung oleh pengalaman teknik lebih dari 25 tahun, Tim kami menawarkan layanan komprehensif—mulai dari desain cetakan yang disesuaikan dan pemesinan presisi hingga produksi skala penuh—didukung oleh sistem jaminan kualitas yang kuat dan layanan pelanggan yang proaktif. Bersertifikat di bawah ISO9001, ISO14001, dan IATF 16949, Kami terus berupaya mencapai keunggulan dalam kualitas, inovasi, dan kepuasan pelanggan.
Lebih dari 100,000 unit tersedia, dengan pengiriman 2 jam untuk produk standar.
Menerapkan sistem inspeksi tiga tahap—pemeriksaan material awal, inspeksi dalam proses, dan inspeksi akhir.
Inventaris besar dan proses cepat, Menjamin pengiriman tepat waktu dengan inspeksi produk 100%.
Rentang Aplikasi
Pilihan utama di berbagai industri.
Pertanyaan yang diajukan
1. What is an Automotive Mold Guide Bushing used for?
It is used to ensure precise alignment and smooth movement of mold components in automotive injection and stamping mold systems.
2. Material apa saja yang umum digunakan?
Typical materials include bearing steel, baja paduan, dan perunggu, selected for high strength, ketahanan aus, dan daya tahan.
3. Can it withstand high-volume production?
Iya, it is designed for continuous operation in high-cycle automotive manufacturing environments with stable performance.
4. Apakah kompatibel dengan sistem cetakan standar?
Iya, it is compatible with MISUMI, HASCO, DME, DARI, dan dasar cetakan standar ISO.
5. Do you support custom production?
Iya, kami menawarkan kustomisasi OEM termasuk ukuran non-standar, gambar-gambar, and material specifications.
