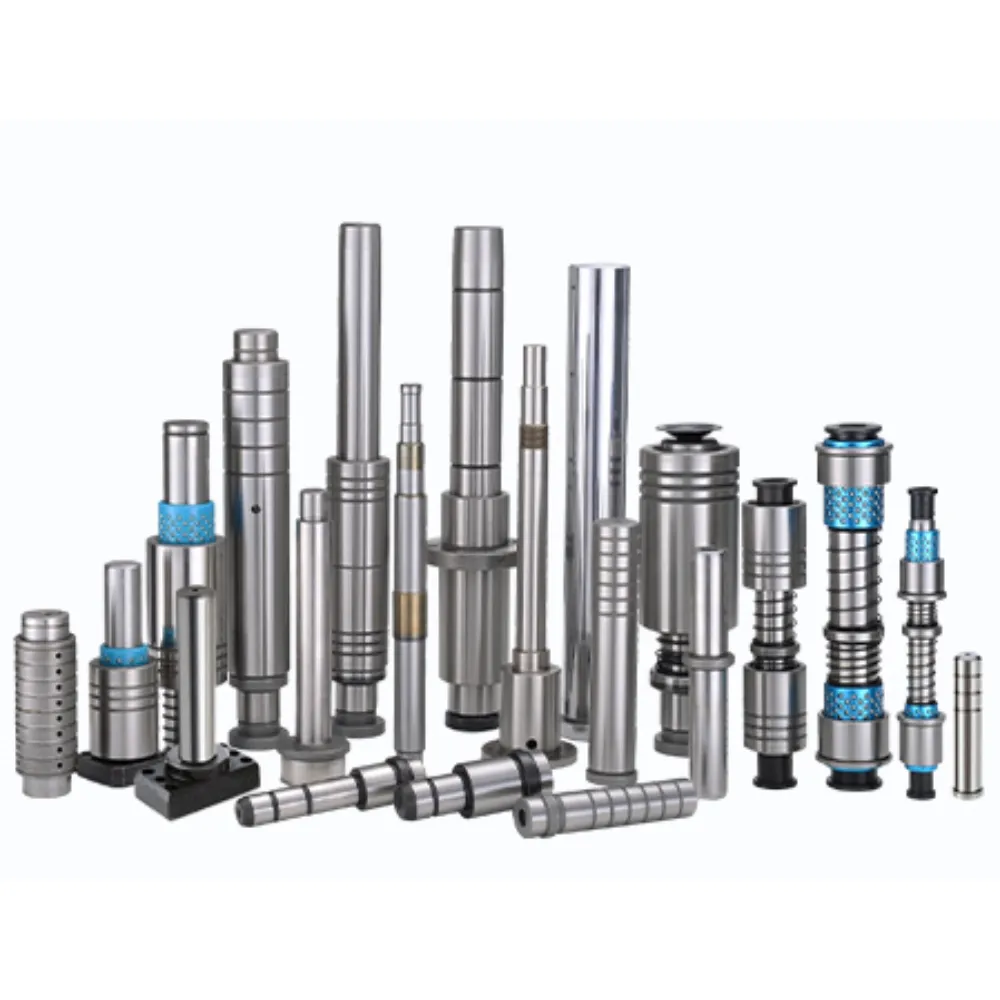

Pilar panduan 30mm
The 30mm guide pillar is a core positioning component used in precision molds and industrial tooling systems. It ensures accurate alignment between moving mold parts while maintaining consistent guiding performance during repeated production cycles. Built from hardened alloy steel with fine machining, it offers strong structural strength and stable operation in demanding environments. The component is suitable for various mold assemblies and supports reliable performance in both high-speed stamping and injection molding applications.
Deskripsi Produk
Pendahuluan
The 30mm guide pillar is a precision-engineered mold component designed to ensure accurate alignment and stable guidance in industrial tooling systems. Cetakan ini banyak digunakan dalam cetakan injeksi, mencap ini, and die casting applications where consistent positioning between upper and lower mold assemblies is critical. Manufactured from high-quality hardened steel and processed with fine grinding, it delivers excellent dimensional accuracy and long-term durability under continuous working conditions.
With outstanding wear resistance and high hardness, the 30mm guide pillar helps reduce friction and improve the overall efficiency of mold operation. Its smooth surface finish ensures stable movement when paired with guide bushes, minimizing mechanical wear and extending the service life of the entire mold system. The product is suitable for high-speed and high-load production environments, maintaining precision even after repeated cycles.
This guide pillar can be customized in length, toleransi, and material grade to meet different industrial requirements. It is compatible with international mold standards such as ISO, DARI, dan JIS, making it suitable for global applications. Whether used in automotive manufacturing, perkakas presisi, or automated production lines, the 30mm guide pillar provides reliable performance and consistent accuracy for modern mold systems.
Spesifikasi
| Parameter | Nilai |
|---|---|
| Diameter | 30 milimeter |
| Rentang panjang | 100–1000 milimeter |
| Kelas Bahan | SUJ2 / 100Cr6 / GCr15 |
| Kekerasan | 58–62 HRC |
| Kekasaran Permukaan | Ra 0,2–0,8 μm |
| Toleransi Kelurusan | ≤ 0.005 mm |
| Toleransi Kebulatan | ≤ 0.003 mm |
| Perlakuan Panas | Melalui pengerasan / kasus yang dikeraskan |
| Jenis Aplikasi | Penyelarasan cetakan / panduan mati |
| Lingkungan Kerja | Stamping / cetakan injeksi berkecepatan tinggi |
Tiga Aspek Kustomisasi Utama, Disesuaikan dengan Kebutuhan Anda
Mencocokkan berbagai metode kustomisasi untuk memenuhi berbagai kebutuhan.
Manufaktur Presisi, Kualitas Luar Biasa
Stabilitas Dimensi Tinggi
The 30mm guide pillar maintains excellent dimensional consistency under heavy load, ensuring precise mold alignment and reducing deviation during long-term continuous industrial operation cycles.
Ketahanan Aus yang Ditingkatkan
Through advanced heat treatment and surface finishing, the guide pillar resists abrasion effectively, minimizing surface damage and extending service life in high-friction molding environments.
Performa Pemandu Mulus
Precision grinding ensures ultra-smooth surface contact, allowing stable movement with guide bushes and reducing resistance, getaran, and mechanical wear during mold operation.
Dukungan Beban Tinggi yang Andal
Designed for demanding production conditions, the guide pillar provides strong structural integrity, maintaining accurate positioning even under high pressure and repeated stamping or injection cycles.
Layanan Berkualitas, Waktu pengiriman yang dipersingkat
Dari tinjauan desain hingga pengiriman, Kami menyediakan tindak lanjut satu lawan satu khusus selama seluruh proses.
Konsultasi → Menyediakan Gambar → Tinjauan Desain & Penawaran → Pemrosesan Pesanan → Inspeksi Kualitas → Pengiriman Tepat Waktu → Tindak Lanjut Purna Jual
Keuntungan kami
Didukung oleh pengalaman teknik lebih dari 25 tahun, Tim kami menawarkan layanan komprehensif—mulai dari desain cetakan yang disesuaikan dan pemesinan presisi hingga produksi skala penuh—didukung oleh sistem jaminan kualitas yang kuat dan layanan pelanggan yang proaktif. Bersertifikat di bawah ISO9001, ISO14001, dan IATF 16949, Kami terus berupaya mencapai keunggulan dalam kualitas, inovasi, dan kepuasan pelanggan.
Lebih dari 100,000 unit tersedia, dengan pengiriman 2 jam untuk produk standar.
Menerapkan sistem inspeksi tiga tahap—pemeriksaan material awal, inspeksi dalam proses, dan inspeksi akhir.
Inventaris besar dan proses cepat, Menjamin pengiriman tepat waktu dengan inspeksi produk 100%.
Rentang Aplikasi
Pilihan utama di berbagai industri.
Pertanyaan yang diajukan
Q1: What is a 30mm guide pillar used for?
It is used for precise alignment in injection molds, mencap ini, and tooling systems to ensure stable and accurate mold movement.
Q2: What materials are used for guide pillars?
Common materials include hardened steel such as GCr15, SUJ2, atau 100Cr6, menawarkan kekuatan tinggi dan ketahanan aus.
Q3: Can the length be customized?
Iya, the 30mm guide pillar can be customized in length, toleransi, and specifications according to different mold requirements.
Q4: Apakah kompatibel dengan standar internasional?
Iya, kompatibel dengan ISO, DARI, dan standar JIS, and can also match HASCO and DME systems.
Q5: How long is the service life?
With proper heat treatment and maintenance, it offers long service life even under high-load and high-frequency production conditions.
